Setting Up FreeIPA with OpenManage

My Environment

Section titled “My Environment”

RHEL Version

Section titled “RHEL Version”
  NAME="Red Hat Enterprise Linux"
  VERSION="8.2 (Ootpa)"
  ID="rhel"
  ID_LIKE="fedora"
  VERSION_ID="8.2"
  PLATFORM_ID="platform:el8"
  PRETTY_NAME="Red Hat Enterprise Linux 8.2 (Ootpa)"
  ANSI_COLOR="0;31"
  CPE_NAME="cpe:/o:redhat:enterprise_linux:8.2:GA"
  HOME_URL="https://www.redhat.com/"
  BUG_REPORT_URL="https://bugzilla.redhat.com/"


  REDHAT_BUGZILLA_PRODUCT="Red Hat Enterprise Linux 8"
  REDHAT_BUGZILLA_PRODUCT_VERSION=8.2
  REDHAT_SUPPORT_PRODUCT="Red Hat Enterprise Linux"
  REDHAT_SUPPORT_PRODUCT_VERSION="8.2"
  Red Hat Enterprise Linux release 8.2 (Ootpa)
  Red Hat Enterprise Linux release 8.2 (Ootpa)

FreeIPA Version

Section titled “FreeIPA Version”
  [root@centos ~]# ipa --version
  VERSION: 4.8.4, API_VERSION: 2.235

OpenManage Version

Section titled “OpenManage Version”
  Version 3.4.1 (Build 24)

Helpful Resources

Section titled “Helpful Resources”

Dell Tutorial

Logs Explained

LDAP Result Codes

Helpful Post on Bind DN

Install Instructions

Section titled “Install Instructions”
  1. Install RHEL
  2. Change hostname 1.hostname freeipa.grant.lan && hostnamectl set-hostname freeipa.grant.lan 2.Change in /etc/hostname 3.Configure DNS to return for this hostname. Double check with dig +short freeipa.grant.lan A && dig +short -x 192.168.1.95
  3. Follow RHEL’s instructions 1.I used Chapter 5 for primary installation
    1. Run kinit admin - this allows you to use the command line tools otherwise they’ll complain about kerberos.
  5. Log into FreeIPA server at https://<your_hostname>. In my case, Windows popped up a username and password prompt. That prompt didn’t work - I had to exit it and then log into the webGUI.
  6. Go to Users and then directory services in OpenManage. I used the following:
    1. Note: You can get the Bind DN by running ldapsearch from the command line.
  7. Create a new user and new group in the UI and assign the new user to the new group.
  8. Install OpenManage
  9. Go to Application Settings -> Directory Services
  10. Substitute with your values and then click test. I wasn’t able to get this to work with the generic admin user. In the test screen I used that new user to connect to directory services

Helpful Commands

Section titled “Helpful Commands”

To start the IPA service use ipactl start|stop|restart. You can check the status with ipactl status.

Bug

Section titled “Bug”
  1. I used the settings defined here:

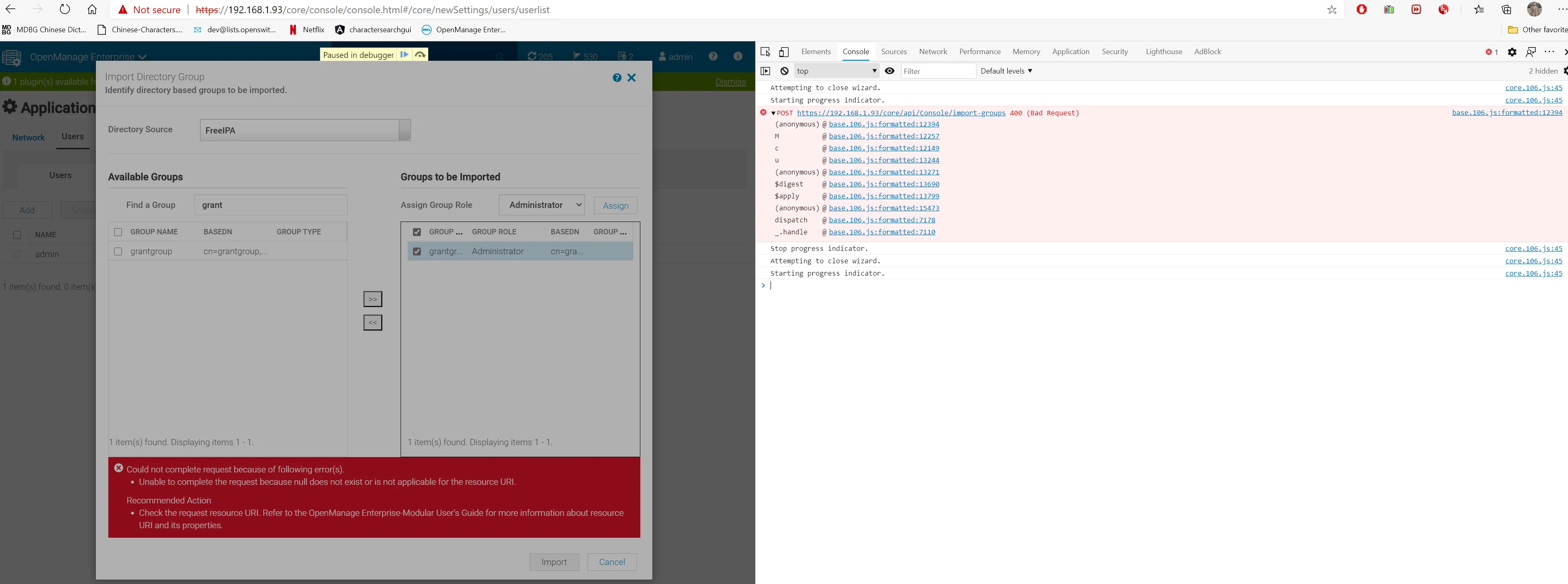

  2. When I went to import the users from a group I received the following:

The code in question:

Below was the value of u at runtime:

  [
  {
        "userTypeId":2,
        "objectGuid":null,
        "objectSid":null,
        "directoryServiceId":13483,
        "name":"grantgroup",
        "password":"",
        "userName":"grantgroup",
        "roleId":"10",
        "locked":false,
        "isBuiltin":false,
        "enabled":true
  }
  ]

Error in logs

  [ERROR] 2020-10-22 07:33:08.392 [ajp-bio-8009-exec-2] BaseController - com.dell.enterprise.exception.ui.ConsoleException: error.general_known_error_occurred
  com.dell.enterprise.exception.ui.ConsoleException: error.general_known_error_occurred
        at com.dell.enterprise.controller.console.ADController.importGroups(ADController.java:400) ~[UI.ADPlugin-0.0.1-SNAPSHOT.jar:?]
        at sun.reflect.GeneratedMethodAccessor824.invoke(Unknown Source) ~[?:?]
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[?:1.8.0_262]
        at java.lang.reflect.Method.invoke(Method.java:498) ~[?:1.8.0_262]
        at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:205) ~[spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:133) ~[spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:97) ~[spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:854) ~[spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:765) ~[spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:85) ~[spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:967) [spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:901) [spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:970) [spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:872) [spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:650) [tomcat-servlet-3.0-api.jar:?]
        at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:846) [spring-webmvc-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at javax.servlet.http.HttpServlet.service(HttpServlet.java:731) [tomcat-servlet-3.0-api.jar:?]
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:303) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:208) [catalina.jar:7.0.76]
        at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52) [tomcat7-websocket.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:241) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:208) [catalina.jar:7.0.76]
        at com.dell.enterprise.filter.ui.CacheControlFilter.doFilterInternal(CacheControlFilter.java:23) [classes/:?]
        at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107) [spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:347) [spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:263) [spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:241) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:208) [catalina.jar:7.0.76]
        at org.apache.catalina.filters.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:108) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:241) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:208) [catalina.jar:7.0.76]
        at org.apache.shiro.web.servlet.ProxiedFilterChain.doFilter(ProxiedFilterChain.java:61) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AdviceFilter.executeChain(AdviceFilter.java:108) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AdviceFilter.doFilterInternal(AdviceFilter.java:137) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:125) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.ProxiedFilterChain.doFilter(ProxiedFilterChain.java:66) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AdviceFilter.executeChain(AdviceFilter.java:108) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AdviceFilter.doFilterInternal(AdviceFilter.java:137) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:125) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.ProxiedFilterChain.doFilter(ProxiedFilterChain.java:66) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AbstractShiroFilter.executeChain(AbstractShiroFilter.java:450) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AbstractShiroFilter$1.call(AbstractShiroFilter.java:365) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.subject.support.SubjectCallable.doCall(SubjectCallable.java:90) [shiro-core-1.6.0.jar:1.6.0]
        at org.apache.shiro.subject.support.SubjectCallable.call(SubjectCallable.java:83) [shiro-core-1.6.0.jar:1.6.0]
        at org.apache.shiro.subject.support.DelegatingSubject.execute(DelegatingSubject.java:387) [shiro-core-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.AbstractShiroFilter.doFilterInternal(AbstractShiroFilter.java:362) [shiro-web-1.6.0.jar:1.6.0]
        at org.apache.shiro.web.servlet.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:125) [shiro-web-1.6.0.jar:1.6.0]
        at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:347) [spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:263) [spring-web-4.3.28.RELEASE.jar:4.3.28.RELEASE]
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:241) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:208) [catalina.jar:7.0.76]
        at com.dell.enterprise.core.integration.lib.common.filter.RequestFilter.doFilter(RequestFilter.java:103) [common-0.0.1-SNAPSHOT.jar:?]
        at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:241) [catalina.jar:7.0.76]
        at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:208) [catalina.jar:7.0.76]
        at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:218) [catalina.jar:7.0.76]
        at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:110) [catalina.jar:7.0.76]
        at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:498) [catalina.jar:7.0.76]
        at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:169) [catalina.jar:7.0.76]
        at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:103) [catalina.jar:7.0.76]
        at org.apache.catalina.valves.AccessLogValve.invoke(AccessLogValve.java:962) [catalina.jar:7.0.76]
        at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:116) [catalina.jar:7.0.76]
        at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:445) [catalina.jar:7.0.76]
        at org.apache.coyote.ajp.AjpProcessor.process(AjpProcessor.java:190) [tomcat-coyote.jar:7.0.76]
        at org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:637) [tomcat-coyote.jar:7.0.76]
        at org.apache.tomcat.util.net.JIoEndpoint$SocketProcessor.run(JIoEndpoint.java:316) [tomcat-coyote.jar:7.0.76]
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_262]
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_262]
        at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-coyote.jar:7.0.76]
        at java.lang.Thread.run(Thread.java:748) [?:1.8.0_262]

Further Explanation

Section titled “Further Explanation”

The URI endpoint is: https://192.168.1.93/core/api/Console/import-groups

This is the JSON returned from the call.

  {severity: "IGNORE", message: "error.general_known_error_occurred",…}
  debug: false
  details: {error: {code: "Base.1.0.GeneralError",…}}
  error: {code: "Base.1.0.GeneralError",…}
  @Message.ExtendedInfo: [{MessageId: "CGEN1004", RelatedProperties: [],…}]
  code: "Base.1.0.GeneralError"
  message: "A general error has occurred. See ExtendedInfo for more information."
  message: "error.general_known_error_occurred"
  severity: "IGNORE"
  timestamp: "2020-10-21T14:43:44.385-0500"

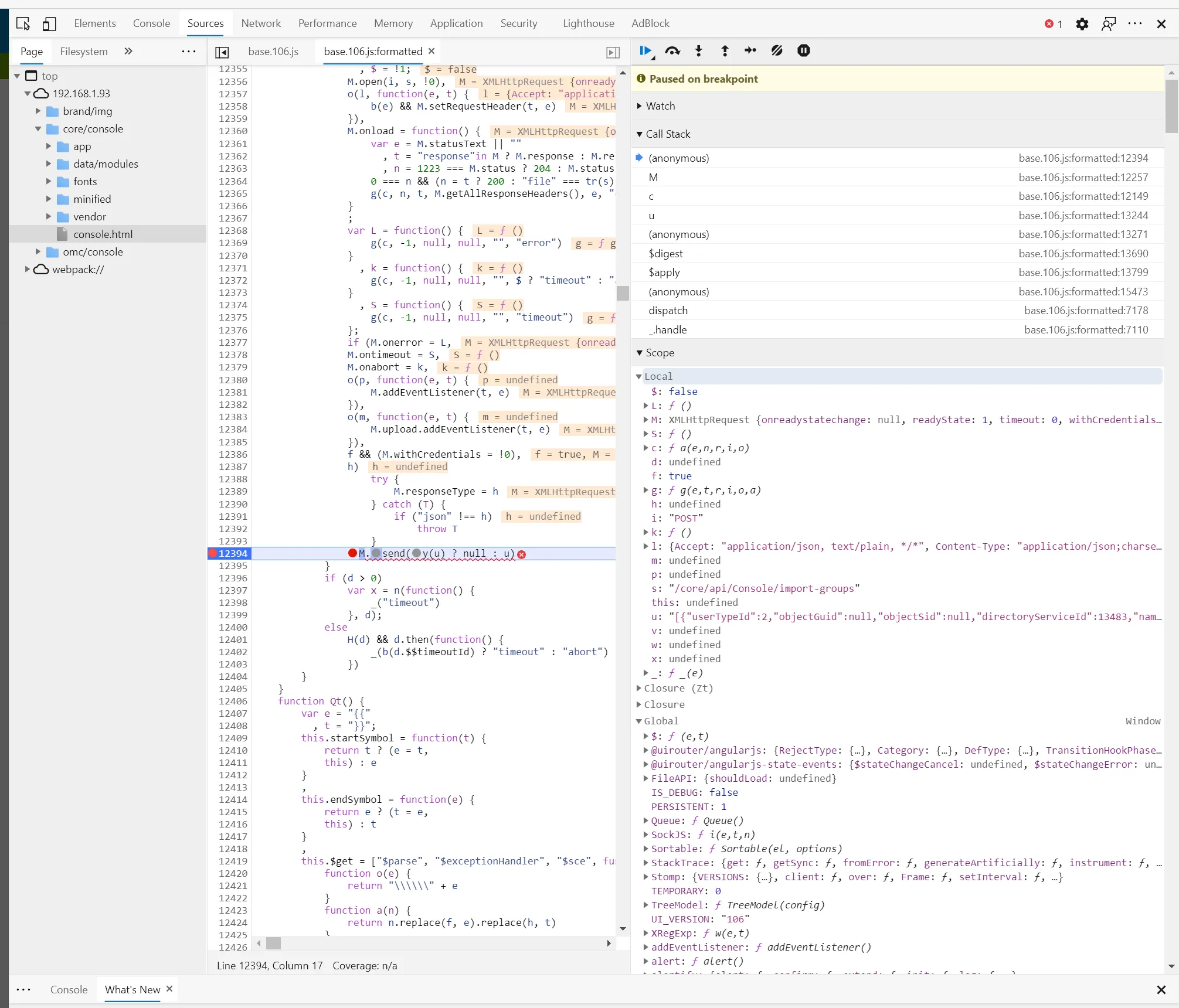

The errors occurs at: M.send(y(u) ? null : u)

See here for a description of Javascript’s ternary operator.

In this case it is saying if y(u) is true then the value is set to null, otherwise it is set to u. The y function is:

function y(e) {
    return "undefined" == typeof e
}

It is just a basic check to see if u is defined or not. M is an instance of XMLHttpRequest. We can see M being called with open M.open(i, s, !0) where i is “POST” and s is “/core/api/Console/import-groups”.

The problem occurs because objectGuid and objectSid are set to null.

Resolution

Section titled “Resolution”

See duplicate_bug.py for a replication of the problem. Replace the payload:

  {
        "userTypeId":2,
        "objectGuid":null,
        "objectSid":null,
        "directoryServiceId":13483,
        "name":"grantgroup",
        "password":"",
        "userName":"grantgroup",
        "roleId":"10",
        "locked":false,
        "isBuiltin":false,
        "enabled":true
  }

with the data from your instance. I grabbed this out of the javascript debugger. To fix the problem, you have to lookup the uid/gid (which correspond to objectSid and objectGuid respectively) on your LDAP server and replace the null values. I used ldapsearch to find mine:

  # grant, users, compat, grant.lan
  dn: uid=grant,cn=users,cn=compat,dc=grant,dc=lan
  objectClass: posixAccount
  objectClass: ipaOverrideTarget
  objectClass: top
  gecos: Grant Curell
  cn: Grant Curell
  uidNumber: 1314600001
  gidNumber: 1314600001
  loginShell: /bin/sh
  homeDirectory: /home/grant
  ipaAnchorUUID:: OklQQTpncmFudC5sYW46OWIzOTYwNDQtMTNhZS0xMWViLTllNzctMDA1MDU2Ym
  U4NGIw
  uid: grant

You can see the uidNumber and gidNumber fields. Change the payload out in duplicate_bug.py and it will correctly import the group.

  test_payload = [
    {
          "userTypeId": 2,
          "objectGuid": 1314600001,
          "objectSid": 1314600001,
          "directoryServiceId": 13483,
          "name": "grantgroup",
          "password": "",
          "userName": "grant",
          "roleId": "10",
          "locked": False,
          "isBuiltin": False,
          "enabled": True
    }
  ]
