Load Balancing with LAG OPX

In this test case the goal is to create a simple packet broker using a reverse LAG port.

Helpful Links

ONIE Network Install Process Overview

OPX Install Instructions for Dell EMC Equipment

OPX Tools Source Code

OPX Command Reference

OPX LAG Command Documenattion

OPX Docs Home

List of Supported Hardware

Helpful Debug Commands

cps_get_oid.py -qua target base-switch/switching-entities/switching-entity
cps_model_info base-switch/switching-entities/switching-entity
cps_set_oid.py -qua target base-switch/switching-entities/switching-entity name=lag-hash-fields attr=src-ip,dest-ip,l4-dest-port,l4-src-port,ip-protocol

My Configuration

General Configuration

• ONIE host is running RHEL 8
• I am using a Dell S4112F-ON for testing
• OpenSwitch version PKGS_OPX-3.2.0-installer-x86_64
• PFSense running DNS and DHCP as services

RHEL Release Info

NAME="Red Hat Enterprise Linux"
VERSION="8.0 (Ootpa)"
ID="rhel"
ID_LIKE="fedora"
VERSION_ID="8.0"
PLATFORM_ID="platform:el8"
PRETTY_NAME="Red Hat Enterprise Linux 8.0 (Ootpa)"
ANSI_COLOR="0;31"
CPE_NAME="cpe:/o:redhat:enterprise_linux:8.0:GA"
HOME_URL="https://www.redhat.com/"
BUG_REPORT_URL="https://bugzilla.redhat.com/"

REDHAT_BUGZILLA_PRODUCT="Red Hat Enterprise Linux 8"
REDHAT_BUGZILLA_PRODUCT_VERSION=8.0
REDHAT_SUPPORT_PRODUCT="Red Hat Enterprise Linux"
REDHAT_SUPPORT_PRODUCT_VERSION="8.0"
Red Hat Enterprise Linux release 8.0 (Ootpa)
Red Hat Enterprise Linux release 8.0 (Ootpa)

OPX Version

OS_NAME="OPX"
OS_VERSION="unstable"
PLATFORM="S4112F-ON"
ARCHITECTURE="x86_64"
INTERNAL_BUILD_ID="OpenSwitch blueprint for Dell 1.0.0"
BUILD_VERSION="unstable.0-stretch"
BUILD_DATE="2019-06-21T19:04:22+0000"
INSTALL_DATE="2019-10-23T23:16:10+00:00"
SYSTEM_UPTIME= 1 day, 5 minutes
SYSTEM_STATE= running
UPGRADED_PACKAGES=no
ALTERED_PACKAGES=yes

Wasn’t sure why I got the unstable version after installation. It didn’t cause any problems for testing so I just left it as is.

Setup ONIE Prerequisites

See ONIE Install Setup for instructions.

Configure Device for Reverse LAG

Physical Configuration

I used the following SFPs

• 1, 1Gb/s copper SFP (e101-001-0) for input
• 2, 1Gb/s copper SFPs (e101-005-0/e101-009-0) and 1, 10Gb/s, fiber SFP (e101-012-0) for output

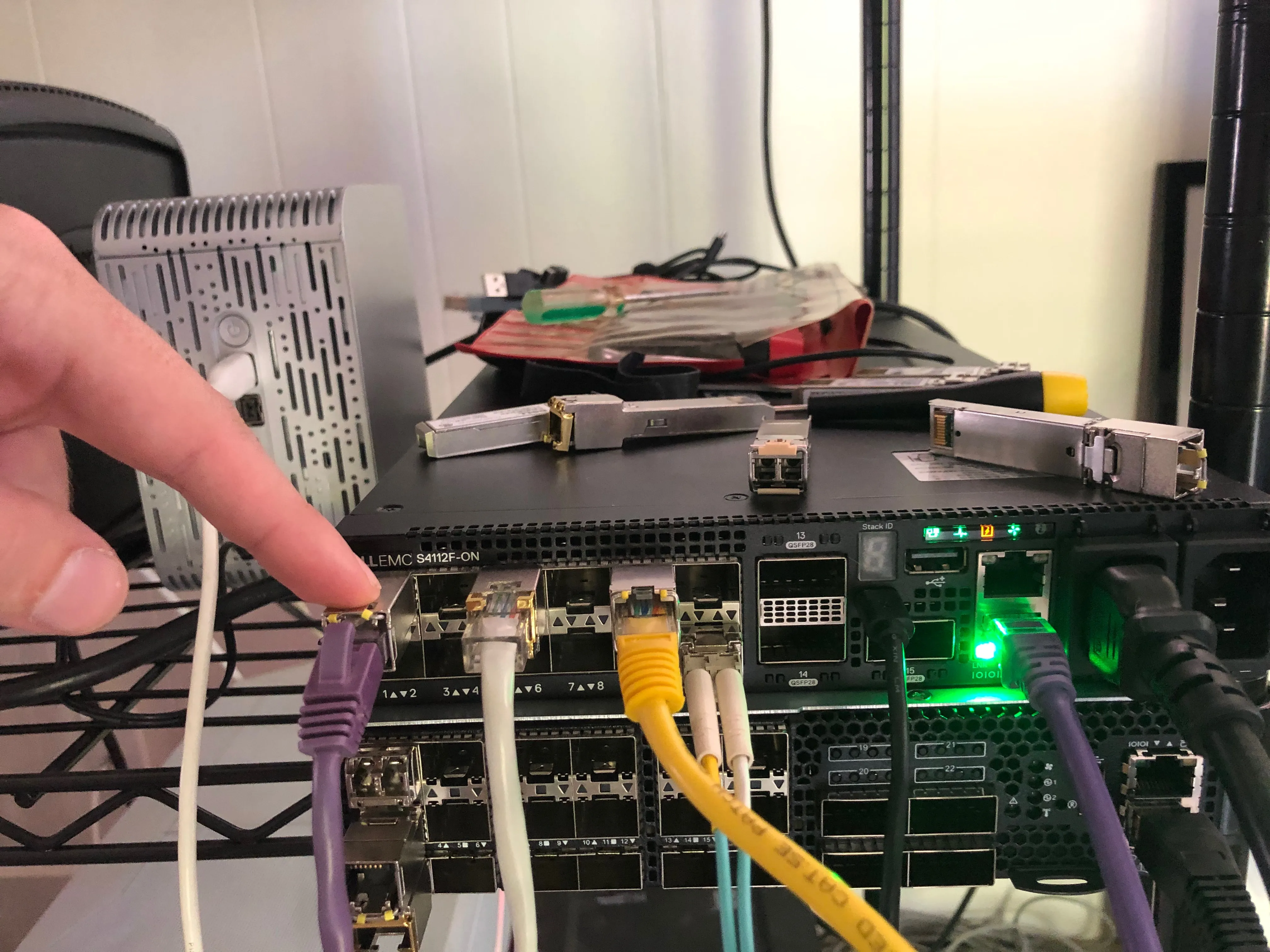

Input Port

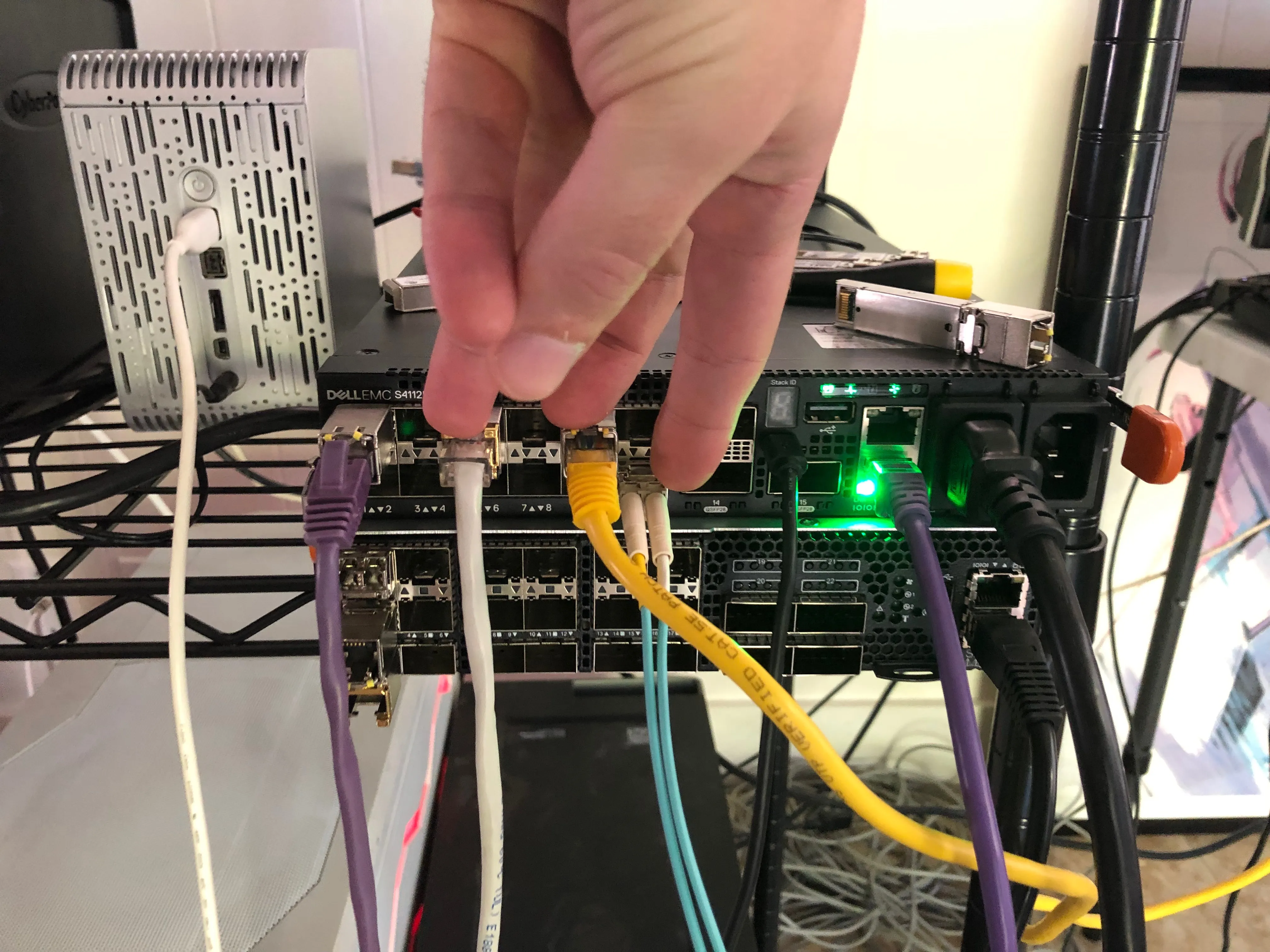

Output Ports

LAG Configuration

Enable LAG Ports and Input Port

root@OPX:~# ip link set e101-001-0 up
root@OPX:~# ip link set e101-005-0 up
root@OPX:~# ip link set e101-009-0 up
root@OPX:~# ip link set e101-012-0 up
root@OPX:~# opx-show-interface --summary
Port       | Enabled | Operational status | Supported speed
-----------------------------------------------------------
e101-001-0 | yes     | up                 | 1G 10G
e101-002-0 | no      | down               | 1G 10G
e101-003-0 | no      | down               | 1G 10G
e101-004-0 | no      | down               | 1G 10G
e101-005-0 | yes     | up                 | 1G 10G
e101-006-0 | no      | down               | 1G 10G
e101-007-0 | no      | down               | 1G 10G
e101-008-0 | no      | down               | 1G 10G
e101-009-0 | yes     | up                 | 1G 10G
e101-010-0 | no      | down               | 1G 10G
e101-011-0 | no      | down               | 1G 10G
e101-012-0 | yes     | up                 | 1G 10G
e101-013-0 | no      | down               | 100G
e101-014-0 | no      | down               | 100G
e101-015-0 | no      | down               | 100G
eth0       | yes     | UNKNOWN            | UNKNOWN

Configure LAG

Configure LAG Algorithm

You can see the switch’s global paramters with the opx-show-global-switch command:

root@OPX:~# opx-show-global-switch
Switch id 0
    ACL entry max priority:                     2147483647
    ACL entry min priority:                     0
    ACL table max priority:                     11
    ACL table min priority:                     0
    Bridge table size:                          147456
    BST enable:                                 off
    BST tracking mode:                          current
    Counter refresh interval:                   5 s
    Default mac address:                        88:6f:d4:98:b7:80
    ECMP group size:                            256
    ECMP hash algorithm:                        crc
    ECMP hash seed value:                       0
    Egress buffer pool num:                     4
    Ingress buffer pool num:                    4
    IPv6 extended prefix routes:                0
    IPv6 extended prefix routes lpm block size: 1024
    L3 nexthop table size:                      32768
    LAG hash algorithm:                         crc
    LAG hash seed value:                        0
    MAC address aging timer:                    1800 s
    Max ECMP entries per group:                 0
    Max IPv6 extended prefix routes:            3072
    Max MTU:                                    9216
    Max VXLAN overlay nexthops:                 4096
    Max VXLAN overlay rifs:                     2048
    Number of multicast queues per port:        10
    Number of queues cpu port:                  43
    Number of queues per port:                  20
    Number of unicast queues per port:          10
    QoS rate adjust:                            0
    RIF table size:                             12288
    Switch mode:                                store and forward
    Temperature:                                49 deg. C
    Total buffer size:                          12188
    UFT mode:                                   default
    UFT host table size:                        135168
    UFT L2 mac table size:                      147456
    UFT L3 route table size:                    16384
    VXLAN riot enable:                          on

If you want to change the hash algorithm you can do so with opx-config-global-switch --lag-hash-alg <crc | random | xor> I went ahead and left mine are CRC. This article from Dell can be helpful in deciding.

Configure LAG Fields

More imporantly you will probably want to configure what fields are used to determine the hash. The options are:

• src-mac: The source MAC address of the frame
• dest-mac: The destination MAC of the frame
• vlan-id: The VLAN ID listed in the frame
• ethertype: The ethertype of the frame
• ip-protocol: The IP protocol field in the IPv4 header
• src-ip: The packet source IP
• dest-ip: The destination IP of the packet
• l4-dest-port: The destination port of the segment
• l4-src-port: The source port of the segment
• in-port: The port from which the packet entered. It is unlikely you would want to use this for a reverse LAG

I will use a standard 5-tuple configuration (src/dst IP, src/dest port, protocol #)

Create LAG

opx-config-lag create --name reverse_lag --unblockedports e101-005-0,e101-009-0,e101-012-0 --enable

Results

I wasn’t able to complete the config. There is a bug in OPX preventing you from being able to set the fields on which the LAG will hash. I spent about a day working my way through the problem. See current status on this bug ticket
