PowerScale - Configure with Kubernetes

RKE2 advertises itself as an automatic K8s installer. That is… sort of true based on my experience. It is certainly simpler than what I had to do 7 years ago, but significant assembly by someone who knows Kubernetes and networking was still required.

My IPs

Section titled “My IPs”
  • K8s Master - 10.10.25.135 (k8s-server.lan)
  • K8s Worker - 10.10.25.136 (k8s-agent1.lan)
  • Isilon - 10.10.25.80

Install RKE2 on Server

Section titled “Install RKE2 on Server”

I recommend just making life easy and doing an su - and just doing everything as root.

Note: after heavy experimentation to include writing the below code that does this I still found flannel choked with firewalld on so ultimately I just ran systemctl disable --now firewalld. See Troubleshooting Flannel Issues. Since it’s a lab I decided the juice wasn’t worth the squeeze because I think the problem is in the internal masquerade rules. The firewall rules I tried are in firewall ports I tried

Terminal window
curl -sfL https://get.rke2.io | sudo sh -
sudo systemectl disable --now firewalld
sudo systemctl enable rke2-server.service
sudo systemctl start rke2-server.service
cd /var/lib/rancher/rke2/bin
echo 'export KUBECONFIG=/etc/rancher/rke2/rke2.yaml' >> ~/.bashrc
echo 'export PATH=$PATH:/var/lib/rancher/rke2/bin' >> ~/.bashrc
source ~/.bashrc

The rke2 server process listens on port 9345 for new nodes to register. The Kubernetes API is still served on port 6443, as normal.

Set Up a K8s Node

Section titled “Set Up a K8s Node”
Terminal window
sudo curl -sfL https://get.rke2.io | sudo INSTALL_RKE2_TYPE="agent" sh -
systemctl disable --now firewalld
sudo systemctl enable rke2-agent.service
mkdir -p /etc/rancher/rke2/
echo 'export PATH=$PATH:/var/lib/rancher/rke2/bin' >> ~/.bashrc
source ~/.bashrc
vim /etc/rancher/rke2/config.yaml

Note: If you don’t update bashrc and source it, none of the kubectl commands will run correctly because RKE2 uses a custom API port (6443) whereas the Kubernetes default is 8080.

Next you have to populate the config file with your server’s token info. You get the token by logging into the server and running:

Terminal window
[root@k8s-server tmp]# cat /var/lib/rancher/rke2/server/node-token
K1016508dd12aa27c24f9898fdebd534a7f2dc5b8cd719d1f6cf131edb799247d0e::server:ede9908e983065b06dfabcd9ba45d7ab

Then you put that token in the aforementioned config file:

server: https://k8s-server.lan:9345
token: K1016508dd12aa27c24f9898fdebd534a7f2dc5b8cd719d1f6cf131edb799247d0e::server:ede9908e983065b06dfabcd9ba45d7ab

After you do this and save it I strongly suggest running shutdown -r now and giving things a reboot. I noticed on my setup, for some reason, flannel failed to come up. You can check if this is the case by running ip a s. You should see:

Terminal window
[grant@k8s-agent1 ~]$ ip a s
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:50:56:8a:b2:8c brd ff:ff:ff:ff:ff:ff
    altname enp2s1
    inet 10.10.25.136/24 brd 10.10.25.255 scope global noprefixroute ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::250:56ff:fe8a:b28c/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
3: calia304d00df8c@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-fef0629e-72af-acbf-9e2e-27a43f48407e
    inet6 fe80::ecee:eeff:feee:eeee/64 scope link
       valid_lft forever preferred_lft forever
4: calib76b9de74c6@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-60486c79-4e9c-14fd-be02-c8243d382b4a
    inet6 fe80::ecee:eeff:feee:eeee/64 scope link
       valid_lft forever preferred_lft forever
5: cali4fbea555e83@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-5c1b74d4-961c-6f3c-950b-4c910cf5c8d6
    inet6 fe80::ecee:eeff:feee:eeee/64 scope link
       valid_lft forever preferred_lft forever
6: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default
    link/ether 12:6d:b8:f6:c8:66 brd ff:ff:ff:ff:ff:ff
    inet 10.42.1.0/32 scope global flannel.1
       valid_lft forever preferred_lft forever
    inet6 fe80::106d:b8ff:fef6:c866/64 scope link
       valid_lft forever preferred_lft forever
9: calid194e3ad4a3@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-5f9c0ded-120d-b035-fe1d-6eab65c96d11
    inet6 fe80::ecee:eeff:feee:eeee/64 scope link
       valid_lft forever preferred_lft forever
10: calia758d43a129@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-97f784af-18ec-46df-ce3f-6607efa71a7f
    inet6 fe80::ecee:eeff:feee:eeee/64 scope link
       valid_lft forever preferred_lft forever
11: calie1439757d80@if3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-a65f26af-89c4-e98c-1248-64b0f4a6cef8
    inet6 fe80::ecee:eeff:feee:eeee/64 scope link
       valid_lft forever preferred_lft forever

Notice that flannel.1 is present along with the calico interfaces. If you don’t see that, try the reboot.

After the server setup I noticed it took quite some time to come up. You can track progress with journalctl -u rke2-server -f. My logs looked like this:

Nov 29 14:21:37 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:37-05:00" level=info msg="Pod for kube-apiserver not synced (waiting for termination of old pod sandbox), retrying"
Nov 29 14:21:38 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:38-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:21:43 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:43-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:21:48 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:48-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:21:53 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:53-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:21:57 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:57-05:00" level=info msg="Pod for etcd is synced"
Nov 29 14:21:57 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:57-05:00" level=info msg="Pod for kube-apiserver not synced (waiting for termination of old pod sandbox), retrying"
Nov 29 14:21:58 k8s-server.lan rke2[1016]: time="2023-11-29T14:21:58-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:22:03 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:03-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:22:08 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:08-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:22:13 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:13-05:00" level=info msg="Waiting to retrieve kube-proxy configuration; server is not ready: https://127.0.0.1:9345/v1-rke2/readyz: 500 Internal Server Error"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Pod for etcd is synced"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Pod for kube-apiserver is synced"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="ETCD server is now running"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="rke2 is up and running"
Nov 29 14:22:17 k8s-server.lan systemd[1]: Started Rancher Kubernetes Engine v2 (server).
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Failed to get existing traefik HelmChart" error="helmcharts.helm.cattle.io \"traefik\" not found"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Reconciling ETCDSnapshotFile resources"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Tunnel server egress proxy mode: agent"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Starting managed etcd node metadata controller"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Reconciliation of ETCDSnapshotFile resources complete"
Nov 29 14:22:17 k8s-server.lan rke2[1016]: time="2023-11-29T14:22:17-05:00" level=info msg="Starting k3s.cattle.io/v1, Kind=Addon controller"

You can see you get constant 500 errors until it eventually fixes itself. When everything has settled down make sure that you see nodes:

Terminal window
[root@k8s-server bin]# kubectl get nodes
NAME             STATUS   ROLES                       AGE   VERSION
k8s-agent1.lan   Ready    <none>                      11m   v1.26.10+rke2r2
k8s-server.lan   Ready    control-plane,etcd,master   60m   v1.26.10+rke2r2

Install Helm

Section titled “Install Helm”

On the server:

Terminal window
cd /tmp
wget https://get.helm.sh/helm-v3.13.2-linux-amd64.tar.gz # Update version as needed
tar xzf helm-v3.13.2-linux-amd64.tar.gz
sudo mv linux-amd64/helm /usr/local/bin/helm
helm version

Install Cert Manager

Section titled “Install Cert Manager”

On the server:

Terminal window
helm repo add jetstack https://charts.jetstack.io
helm repo update
helm install \
  cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --create-namespace \
  --version v1.13.2 \
  --set installCRDs=true

Install Rancher

Section titled “Install Rancher”

On the server:

Terminal window
helm repo add rancher-stable https://releases.rancher.com/server-charts/stable
kubectl create namespace cattle-system
helm install rancher rancher-stable/rancher --namespace cattle-system --set hostname=k8s-server.lan --set bootstrapPassword=PASSWORD --set ingress.tls.source=rancher # YOU HAVE TO UPDATE THIS
echo https://k8s-server.lan/dashboard/?setup=$(kubectl get secret --namespace cattle-system bootstrap-secret -o go-template='{{.data.bootstrapPassword|base64decode}}')

Install a Load Balancer for Bare Metal (metallb)

Section titled “Install a Load Balancer for Bare Metal (metallb)”
Terminal window
kubectl create namespace metallb-system
kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.13.12/config/manifests/metallb-native.yaml

Run vim metallb.yaml and create a file with these contents:

---
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: nat
  namespace: metallb-system
spec:
  addresses:
    - 10.10.25.140-10.10.25.149
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: empty
  namespace: metallb-system

After you create the file run kubectl apply -f metallb.yaml

Now we need to make sure Rancher uses metallb:

WARNING: you need to change the hostname to your hostname WARNING: make sure Rancher is healthy before continuing!

Terminal window
helm upgrade rancher rancher-stable/rancher --namespace cattle-system --set hostname=k8s-server.lan --set rancher.service.type=LoadBalancer
kubectl patch svc rancher -n cattle-system -p '{"spec": {"type": "LoadBalancer"}}'

PowerScale

Section titled “PowerScale”

Setting Up the PowerScale

Section titled “Setting Up the PowerScale”

See PowerScale Setup.

Install the CSI Driver

Section titled “Install the CSI Driver”

I started by following this tutorial

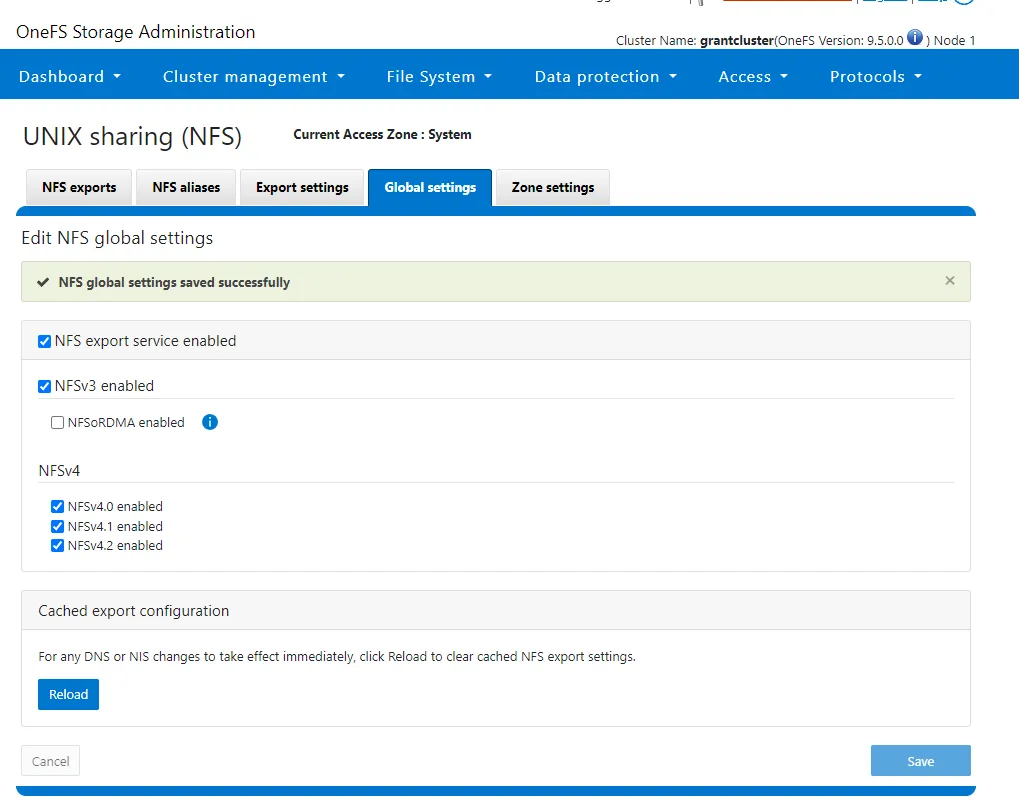

  • Enable NFSv4

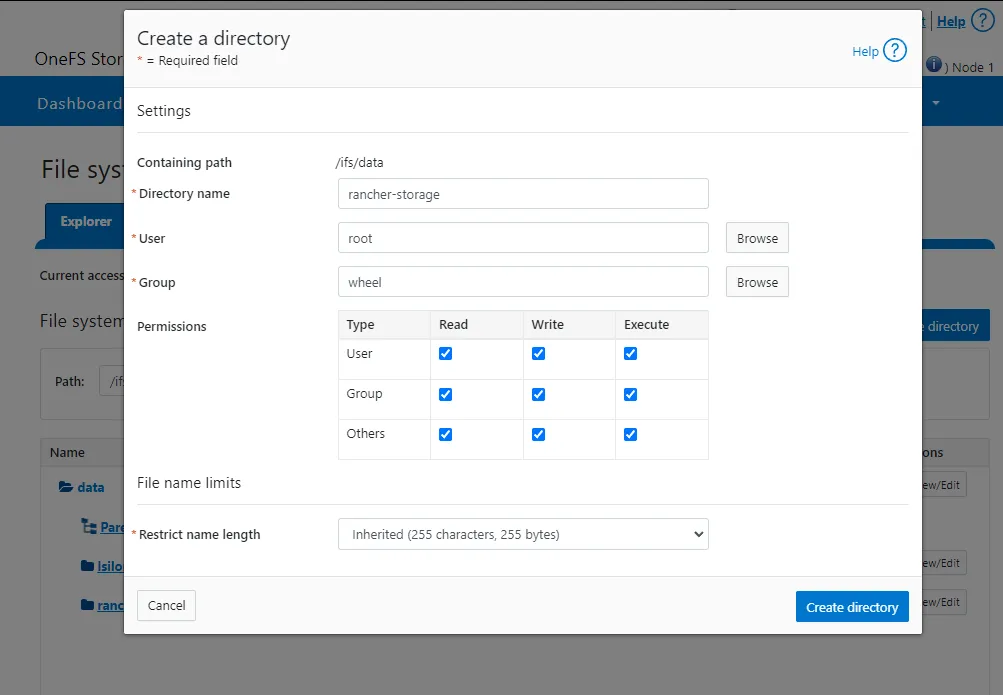

  • Create a directory

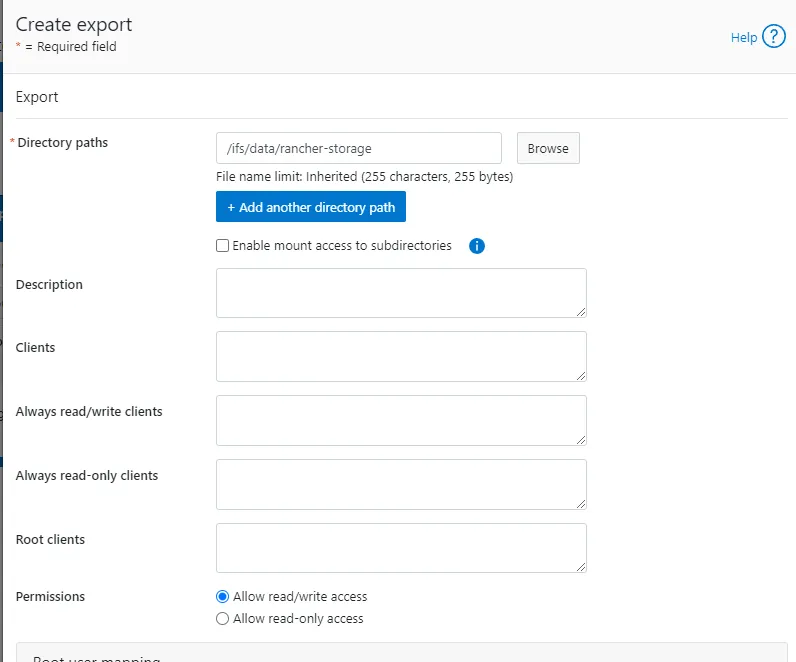

  • Create NFS export

Terminal window
sudo dnf install -y git && git clone -b v2.8.0 https://github.com/dell/csi-powerscale.git
cd csi-powerscale/
wget -O my-isilon-settings.yaml https://raw.githubusercontent.com/dell/helm-charts/csi-isilon-2.8.0/charts/csi-isilon/values.yaml
kubectl create namespace isilon
kubectl create -f empty-secret.yml
kubectl create secret generic isilon-creds -n isilon --from-file=config=secret.yaml
  • On the Isilon you have to run isi_gconfig -t web-config auth_basic=true because I was lazy and I used basic auth and not session based auth.
  • Deploy the CSI driver with ./csi-install.sh --namespace isilon --values my-isilon-settings.yaml
    • WARNING YOU MUST ENABLE ignoreUnresolvableHosts: True in the current version. We are currently investigating the issue and are not exactly sure where the problem is, but the NFS mount from K8s shows up on the Isilon as an IP even with DNS enabled. This will cause the Isilon to reject it and when you attempt to write to the mount it will fail.
  • Next deploy the storage class with kubectl apply -f ./isilon.yml
  • Check it worked with kubectl get storageclass and kubectl describe storageclass isilon
  • Build a test pvc with kubectl apply -f test-pvc.yaml (this should run against the test-pvc file you transferred). Make sure it bound with kubectl get pvc test-pvc
  • On all servers run dnf install -y nfs-utils. IF YOU DO NOT DO THIS YOU WILL SEE AN ERROR ABOUT LOCKS. The package is nfs-common on Debian-based systems.

Troubleshooting

Section titled “Troubleshooting”

Flannel Issues

Section titled “Flannel Issues”

My rancher install failed with no output from the installer. You can manually pull the logs by examining the rancher pod with kubectl logs -n cattle-system rancher-64cf6ddd96-2x2ms

This got me:

2023/11/29 21:04:33 [ERROR] [updateClusterHealth] Failed to update cluster [local]: Internal error occurred: failed calling webhook "rancher.cattle.io.clusters.management.cattle.io": failed to call webhook: Post "https://rancher-webhook.cattle-system.svc:443/v1/webhook/mutation/clusters.management.cattle.io?timeout=10s": context deadline exceeded
2023/11/29 21:04:33 [ERROR] Failed to connect to peer wss://10.42.0.8/v3/connect [local ID=10.42.1.20]: dial tcp 10.42.0.8:443: connect: no route to host
2023/11/29 21:04:34 [ERROR] Failed to connect to peer wss://10.42.1.21/v3/connect [local ID=10.42.1.20]: dial tcp 10.42.1.21:443: connect: no route to host
2023/11/29 21:04:38 [ERROR] Failed to connect to peer wss://10.42.0.8/v3/connect [local ID=10.42.1.20]: dial tcp 10.42.0.8:443: connect: no route to host
2023/11/29 21:04:39 [ERROR] Failed to connect to peer wss://10.42.1.21/v3/connect [local ID=10.42.1.20]: dial tcp 10.42.1.21:443: connect: no route to host
2023/11/29 21:04:43 [ERROR] Failed to connect to peer wss://10.42.0.8/v3/connect [local ID=10.42.1.20]: dial tcp 10.42.0.8:443: connect: no route to host
2023/11/29 21:04:44 [ERROR] Failed to connect to peer wss://10.42.1.21/v3/connect [local ID=10.42.1.20]: dial tcp 10.42.1.21:443: connect: no route to host

on repeat. 10.42.1.21 is an internal flannel address so the next step is to figure out who owns it with kubectl get pods --all-namespaces -o wide:

[root@k8s-server ~]# kubectl get pods --all-namespaces -o wide
NAMESPACE                         NAME                                                    READY   STATUS      RESTARTS       AGE    IP             NODE             NOMINATED NODE   READINESS GATES
cattle-fleet-system               fleet-controller-56968b86b6-tctjr                       1/1     Running     0              44m    10.42.1.24     k8s-agent1.lan   <none>           <none>
cattle-fleet-system               gitjob-7d68454468-bk7fh                                 1/1     Running     0              44m    10.42.1.25     k8s-agent1.lan   <none>           <none>
cattle-provisioning-capi-system   capi-controller-manager-6f87d6bd74-v489n                1/1     Running     0              41m    10.42.1.30     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-64xf7                                    0/2     Completed   0              42m    10.42.1.29     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-h88vn                                    1/2     Error       0              41m    10.42.1.34     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-jndl9                                    1/2     Error       0              41m    10.42.1.33     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-k757h                                    0/2     Completed   0              44m    10.42.1.23     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-ldnkm                                    0/2     Completed   0              45m    10.42.1.22     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-sv5ts                                    0/2     Completed   0              43m    10.42.1.28     k8s-agent1.lan   <none>           <none>
cattle-system                     helm-operation-thct7                                    0/2     Completed   0              43m    10.42.1.27     k8s-agent1.lan   <none>           <none>
cattle-system                     rancher-64cf6ddd96-2x2ms                                1/1     Running     1 (45m ago)    46m    10.42.1.20     k8s-agent1.lan   <none>           <none>
cattle-system                     rancher-64cf6ddd96-drrzr                                1/1     Running     0              46m    10.42.0.8      k8s-server.lan   <none>           <none>
cattle-system                     rancher-64cf6ddd96-qq64g                                1/1     Running     0              46m    10.42.1.21     k8s-agent1.lan   <none>           <none>
cattle-system                     rancher-webhook-58d68fb97d-b5sn8                        1/1     Running     0              41m    10.42.1.32     k8s-agent1.lan   <none>           <none>
cert-manager                      cert-manager-startupapicheck-fvp9t                      0/1     Completed   1              52m    10.42.1.19     k8s-agent1.lan   <none>           <none>
kube-system                       cloud-controller-manager-k8s-server.lan                 1/1     Running     3 (105m ago)   139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       etcd-k8s-server.lan                                     1/1     Running     1              139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-canal-k8b4d                           0/1     Completed   0              139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-coredns-f59dz                         0/1     Completed   0              139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-ingress-nginx-gpt7q                   0/1     Completed   0              139m   10.42.0.2      k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-metrics-server-q9jwf                  0/1     Completed   0              139m   10.42.0.6      k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-snapshot-controller-6pqpg             0/1     Completed   2              139m   10.42.0.4      k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-snapshot-controller-crd-k6klp         0/1     Completed   0              139m   10.42.0.10     k8s-server.lan   <none>           <none>
kube-system                       helm-install-rke2-snapshot-validation-webhook-hrv5n     0/1     Completed   0              139m   10.42.0.3      k8s-server.lan   <none>           <none>
kube-system                       kube-apiserver-k8s-server.lan                           1/1     Running     1              139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       kube-controller-manager-k8s-server.lan                  1/1     Running     2 (105m ago)   139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       kube-proxy-k8s-agent1.lan                               1/1     Running     0              90m    10.10.25.136   k8s-agent1.lan   <none>           <none>
kube-system                       kube-proxy-k8s-server.lan                               1/1     Running     2 (104m ago)   103m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       kube-scheduler-k8s-server.lan                           1/1     Running     1 (105m ago)   139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       rke2-canal-7p5hz                                        2/2     Running     2 (105m ago)   139m   10.10.25.135   k8s-server.lan   <none>           <none>
kube-system                       rke2-canal-9wg57                                        2/2     Running     0              90m    10.10.25.136   k8s-agent1.lan   <none>           <none>
kube-system                       rke2-coredns-rke2-coredns-565dfc7d75-n96xs              1/1     Running     0              90m    10.42.1.2      k8s-agent1.lan   <none>           <none>
kube-system                       rke2-coredns-rke2-coredns-565dfc7d75-xv92q              1/1     Running     1 (105m ago)   139m   10.42.0.3      k8s-server.lan   <none>           <none>
kube-system                       rke2-coredns-rke2-coredns-autoscaler-6c48c95bf9-mh279   1/1     Running     1 (105m ago)   139m   10.42.0.2      k8s-server.lan   <none>           <none>
kube-system                       rke2-ingress-nginx-controller-89d4c                     1/1     Running     0              89m    10.42.1.3      k8s-agent1.lan   <none>           <none>
kube-system                       rke2-ingress-nginx-controller-zctxb                     1/1     Running     1 (105m ago)   139m   10.42.0.5      k8s-server.lan   <none>           <none>
kube-system                       rke2-metrics-server-c9c78bd66-ndcxs                     1/1     Running     1 (105m ago)   139m   10.42.0.4      k8s-server.lan   <none>           <none>
kube-system                       rke2-snapshot-controller-6f7bbb497d-xfk9x               1/1     Running     1 (105m ago)   139m   10.42.0.6      k8s-server.lan   <none>           <none>
kube-system                       rke2-snapshot-validation-webhook-65b5675d5c-sfqb2       1/1     Running     1 (105m ago)   139m   10.42.0.7      k8s-server.lan   <none>           <none>

We can see that 10.42.0.8 and 10.42.1.21 are the two rancher containers which confirms for us that as per usual, flannel is not able to complete even its most basic of functions (VXLAN) successfully and its up to us to fix it.

cattle-system                     rancher-64cf6ddd96-drrzr                                1/1     Running     0              46m    10.42.0.8      k8s-server.lan   <none>           <none>
cattle-system                     rancher-64cf6ddd96-qq64g                                1/1     Running     0              46m    10.42.1.21     k8s-agent1.lan   <none>           <none>

We can get shells in these containers with kubectl exec -it -n cattle-system rancher-64cf6ddd96-drrzr -- /bin/bash. I fished around in here and found nothing. Ultimately I tcpdumped the flannel network and discovered that we were missing some other specific ports it needed:

[root@k8s-agent1 ~]# tcpdump -i flannel.1
dropped privs to tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on flannel.1, link-type EN10MB (Ethernet), snapshot length 262144 bytes
16:17:38.793476 IP 10.42.0.0.58822 > 10.42.1.32.tungsten-https: Flags [S], seq 3219974389, win 64860, options [mss 1410,sackOK,TS val 2506628321 ecr 0,nop,wscale 7], length 0
16:17:38.793509 IP k8s-agent1.lan > 10.42.0.0: ICMP host 10.42.1.32 unreachable - admin prohibited filter, length 68
16:17:39.143985 IP 10.42.0.0.41502 > 10.42.1.32.tungsten-https: Flags [S], seq 1965118956, win 64860, options [mss 1410,sackOK,TS val 2506628671 ecr 0,nop,wscale 7], length 0
16:17:39.144008 IP k8s-agent1.lan > 10.42.0.0: ICMP host 10.42.1.32 unreachable - admin prohibited filter, length 68
16:17:39.847986 IP 10.42.0.0.58822 > 10.42.1.32.tungsten-https: Flags [S], seq 3219974389, win 64860, options [mss 1410,sackOK,TS val 2506629375 ecr 0,nop,wscale 7], length 0
16:17:39.848008 IP k8s-agent1.lan > 10.42.0.0: ICMP host 10.42.1.32 unreachable - admin prohibited filter, length 68
16:17:40.679004 IP 10.42.0.0.47680 > 10.42.1.32.tungsten-https: Flags [S], seq 1291962979, win 64860, options [mss 1410,sackOK,TS val 2506630206 ecr 0,nop,wscale 7], length 0
16:17:40.679028 IP k8s-agent1.lan > 10.42.0.0: ICMP host 10.42.1.32 unreachable - admin prohibited filter, length 68
16:17:41.894997 IP 10.42.0.0.58822 > 10.42.1.32.tungsten-https: Flags [S], seq 3219974389, win 64860, options [mss 1410,sackOK,TS val 2506631422 ecr 0,nop,wscale 7], length 0
16:17:41.895024 IP k8s-agent1.lan > 10.42.0.0: ICMP host 10.42.1.32 unreachable - admin prohibited filter, length 68
16:17:42.727005 IP 10.42.0.0.54136 > 10.42.1.32.tungsten-https: Flags [S], seq 1383176303, win 64860, options [mss 1410,sackOK

Ultimately even after opening the ports I wasn’t able to get it to work so I disabled firewalld altogether.

Firewalld Ports I tried
Section titled “Firewalld Ports I tried”

Firewall rules I tried on server:

Terminal window
# Kubernetes API Server
firewall-cmd --permanent --add-port=6443/tcp
# RKE2 Server
firewall-cmd --permanent --add-port=9345/tcp
# etcd server client API
firewall-cmd --permanent --add-port=2379/tcp
firewall-cmd --permanent --add-port=2380/tcp
# HTTPS
firewall-cmd --permanent --add-port=443/tcp
# NodePort Services
firewall-cmd --permanent --add-port=30000-32767/tcp
# Kubelet API
firewall-cmd --permanent --add-port=10250/tcp
# kube-scheduler
firewall-cmd --permanent --add-port=10251/tcp
# kube-controller-manager
firewall-cmd --permanent --add-port=10252/tcp
# Flannel
firewall-cmd --permanent --add-port=8285/udp
firewall-cmd --permanent --add-port=8472/udp
# Additional ports required for Kubernetes
firewall-cmd --permanent --add-port=10255/tcp # Read-only Kubelet API
firewall-cmd --permanent --add-port=30000-32767/tcp # NodePort Services range
firewall-cmd --permanent --add-port=6783/tcp # Flannel
firewall-cmd --permanent --add-port=6783/udp # Flannel
firewall-cmd --permanent --add-port=6784/udp # Flannel
firewall-cmd --add-masquerade --permanent
firewall-cmd --reload
systemctl restart firewalld

Firewall rules I tried on agent:

Firewall rules I’ve tried

Terminal window
# Kubelet API and Flannel ports
firewall-cmd --permanent --add-port=10250/tcp
firewall-cmd --permanent --add-port=8285/udp
firewall-cmd --permanent --add-port=8472/udp
# NodePort Services
firewall-cmd --permanent --add-port=30000-32767/tcp
# Additional ports required for Kubernetes
firewall-cmd --permanent --add-port=10255/tcp # Read-only Kubelet API
firewall-cmd --permanent --add-port=6783/tcp # Flannel
firewall-cmd --permanent --add-port=6783/udp # Flannel
firewall-cmd --permanent --add-port=6784/udp # Flannel
firewall-cmd --add-masquerade --permanent
firewall-cmd --reload
systemctl restart firewalld

Getting Kubernetes Status

Section titled “Getting Kubernetes Status”

Get Node status

Terminal window
kubectl get nodes

Get Detailed Node Status

Terminal window
kubectl describe nodes

Check all pods status

Terminal window
kubectl get pods --all-namespaces

Check specific pod status

Terminal window
kubectl get pods -n cert-manager

Get detailed info for a specific pod

Terminal window
kubectl describe pod -n cert-manager cert-manager-6f799f7ff8-xx68n

Get the logs from a specific pod

Terminal window
kubectl logs -n kube-system rke2-ingress-nginx-controller-89d4c

Check to see if metallb is giving a service an external IP address

Terminal window
kubectl get svc -n cattle-system

Check metellb config

Terminal window
kubectl get configmap -n metallb-system config -o yaml

Check the metallb speaker output to see if there was an error giving out an IP address

Terminal window
kubectl logs -l component=controller -n metallb-system

Edit a config file inside of K8s

Terminal window
kubectl edit configmap config -n metallb-system

Restart metallb after a config change

Terminal window
kubectl rollout restart daemonset -n metallb-system speaker
kubectl rollout restart deployment -n metallb-system controller

Restart a target service

Sometimes this helps get an IP unstuck from pending

Terminal window
kubectl rollout restart deployment rancher -n cattle-system

Testing NFS Mount Quickly

Section titled “Testing NFS Mount Quickly”

If you get an access denied error you will see something like the below in the pod description

Terminal window
mounting arguments: -t nfs -o rw 10.10.25.80:/ifs/data/rancher-storage/k8s-5b6cb091d0 /var/lib/kubelet/pods/e1bb5844-f482-4dfa-b4b0-0aa8225a316b/volumes/kubernetes.io~csi/k8s-5b6cb091d0/mount
output: mount.nfs: access denied by server while mounting 10.10.25.80:/ifs/data/rancher-storage/k8s-5b6cb091d0

Under the hood the container is just running a generic nfs mount command which you can use for testing. For example, the above would become:

Terminal window
mount -t nfs -o rw 10.10.25.80:/ifs/data/rancher-storage/k8s-5b6cb091d0 /var/lib/kubelet/pods/e1bb5844-f482-4dfa-b4b0-0aa8225a316b/volumes/kubernetes.io~csi/k8s-5b6cb091d0/mount <MOUNT_POINT>

You can use this to quickly test without restarting the containers.

Checking ACLs

Section titled “Checking ACLs”

Get ACLs List

Section titled “Get ACLs List”

You can check ACL permissions with ls -led <target>:

Terminal window
grantcluster-1# ls -led /ifs/data/rancher-storage/k8s-7e21fa52bb
drwxrwxrwx     2 root  wheel  25 Dec  6 20:11 /ifs/data/rancher-storage/k8s-7e21fa52bb
 OWNER: user:root
 GROUP: group:wheel
 SYNTHETIC ACL
 0: user:root allow dir_gen_read,dir_gen_write,dir_gen_execute,std_write_dac,delete_child
 1: group:wheel allow dir_gen_read,dir_gen_write,dir_gen_execute,delete_child
 2: everyone allow dir_gen_read,dir_gen_write,dir_gen_execute,delete_child

See a Specific User’s Privileges

Section titled “See a Specific User’s Privileges”
Terminal window
grantcluster-1# isi auth access root /ifs/data/rancher-storage/k8s-7e21fa52bb
               User
                 Name: root
                  UID: 0
                  SID: SID:S-1-22-1-0


               File
                  Owner
                 Name: root
                   ID: UID:0
                  Group
                 Name: wheel
                   ID: GID:0
       Effective Path: /ifs/data/rancher-storage/k8s-7e21fa52bb
     File Permissions: root level permissions were found for this user and this file.
                 Mode: drwxrwxrwx
        Relevant Mode: drwx------
        Snapshot Path: No
         Delete Child: The parent directory allows delete_child for this user, the user may delete the file.
            Ownership: User is owner and can view and modify file's security descriptor.
