Setting Up Breakout Cables
Helpful Links
Section titled “Helpful Links”Platform Information
Section titled “Platform Information”WARNING If you are using QSFPs you must use Dell branded QSFPs! For breakout mode to work it requires physical modification of the QSFP. It is possible other vendors may make these modifications, but most of the time they do not. When I tested with Intel QSFPs it did not work.

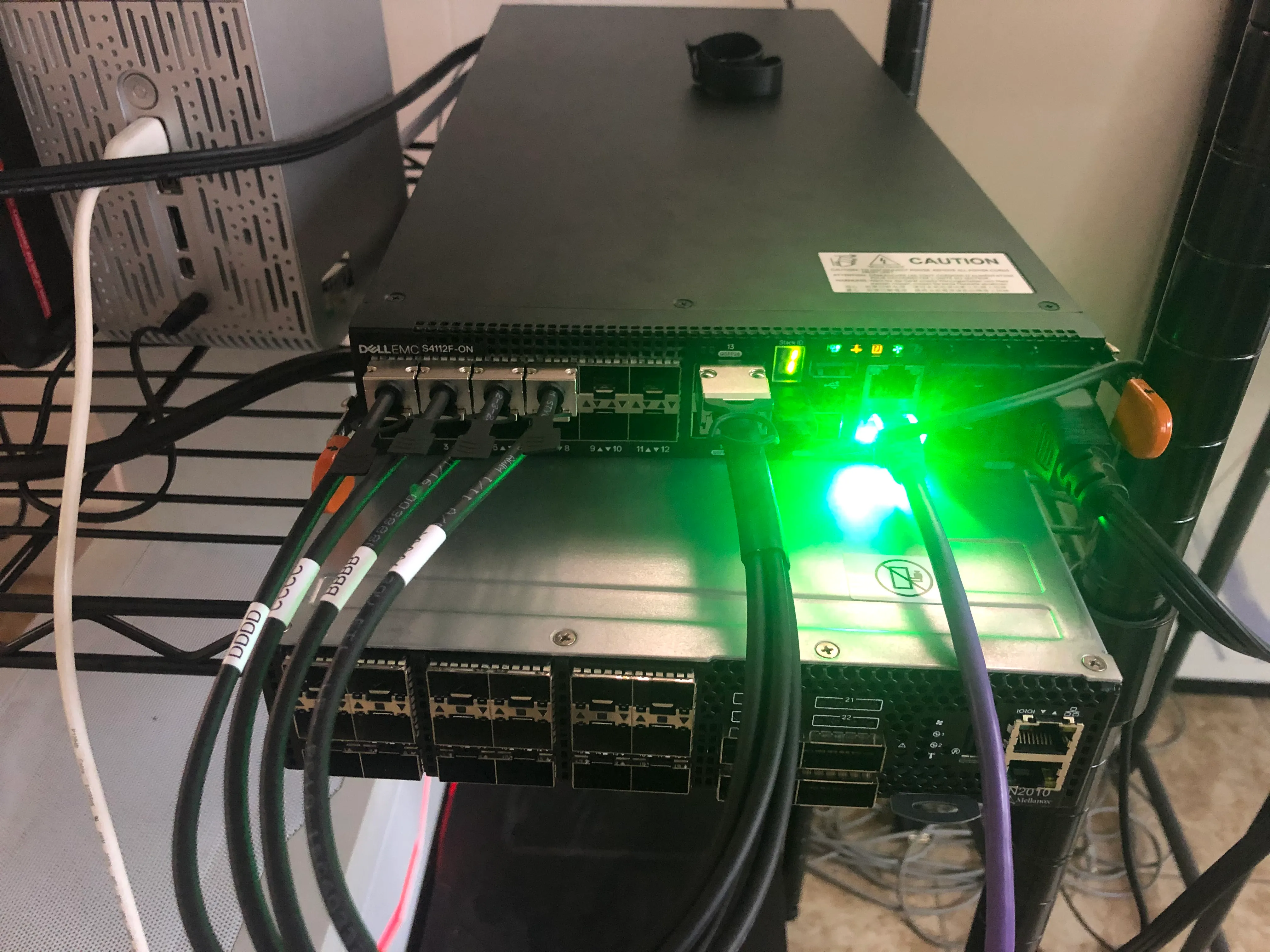

Physical Configuration
Section titled “Physical Configuration”
OS Information
Section titled “OS Information”OS10# show versionDell EMC Networking OS10-EnterpriseCopyright (c) 1999-2019 by Dell Inc. All Rights Reserved.OS Version: 10.4.2.2Build Version: 10.4.2.2.265Build Time: 2019-01-14T15:15:14-0800System Type: S4112F-ONArchitecture: x86_64Up Time: 00:13:36Configure Management Port
Section titled “Configure Management Port”See Configure Management Interface on Dell OS10
Configure Breakout Port Automatically
Section titled “Configure Breakout Port Automatically”Run:
OS10(config)# feature auto-breakoutOS10(config)# do write memory

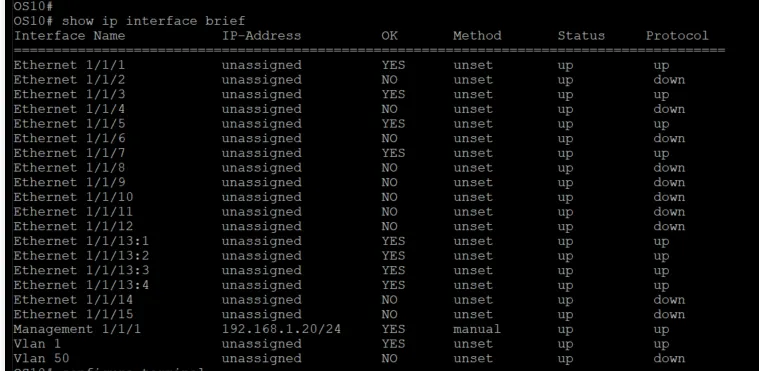

You can then access the interfaces individually using the subport:
OS10(config)# interface ethernet 1/1/13:1Configure Breakout Port Manually
Section titled “Configure Breakout Port Manually”Run:
OS10(config)# interface breakout 1/1/13 map 10g-4xOS10(config)# do write memory
