VxRail Architecture

Most meaningful information on VxRail can be gleaned by reverse engineering the update package. There are three files in the update package of particular interest:

bundles/vxrail-mystic-lcm-7.0.202.rpm
vxrail-system.zip
VXRAIL_7.0.200-17911444.zip

vxrail-mystic-lcm-7.0.202.rpm

The mystic LCM process governs all upgrades. Any code related to the upgrade seems to be part of this process. RPMs are just archives and you can unarchive this file with 7-zip and take a look at its contents for any debugging desired.

vxrail-system.zip

Defines all the baselines available in JSON format.

VXRAIL_7.0.200-17911444.zip

This file contains all the files for VxRail that aren’t associated with the upgrade subsystem.

Inspecting VIB files

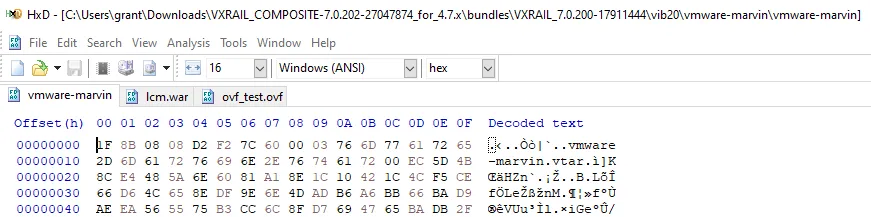

There’s a good chance you may want to be able to look inside VIB files. VIB files use a proprietary compression technology. You can get the type by opening the file in a hex editor and inspecting the headers:

On any ESXi host you can use the vmtar program to open these with the command: vmtar -x <INPUT_VMTAR_FILE> -o <OUTPUT>.tar. The output will be a regular tar file which you can then open with tar xvf <OUTPUT>.tar

Inspecting Java Class Files

Most of the Java I saw was contained in the vmware-marvin file or in the LCM Marvin RPM.

I was wrestling with the error:

web.log: ERROR [tomcat-http--48] com.emc.mystic.manager.commons.emc.webutil.LocaleUtil LocaleUtil.getBundleMessage:198 - No en_US resource bundle for ExpansionValidation with key <SERIAL_NUMBER>

I was able to find the offending file in question at VXRAIL_COMPOSITE-7.0.202-27047874_for_4.7.x\bundles\vxrail-mystic-lcm-7.0.202\vxrail-mystic-lcm-7.0.202-27047874.noarch\usr\lib\vmware-marvin\marvind\webapps\lcm\WEB-INF\lib\lcm-module-7.0.202\com\vce\lcm\emc (that’s post decompression of the vmware-marvin file inside the VIB).

I find that compressing the three core files for VxRail and searching them with grep for keywords from the error messages was pretty effective for locating what I wanted. In my case the following got me what I wanted for the above error:

(base) grant@DESKTOP-2SV1E9O:/mnt/c/Users/grant/Downloads/VXRAIL_COMPOSITE-7.0.202-27047874_for_4.7.x/bundles/vxrail-mystic-lcm-7.0.202/vxrail-mystic-lcm-7.0.202-27047874.noarch$ grep -inr 'resource bundle' ./*
Binary file ./usr/lib/vmware-marvin/marvind/webapps/lcm/WEB-INF/lib/lcm-module-7.0.202/com/vce/lcm/emc/LocaleUtil.class matches

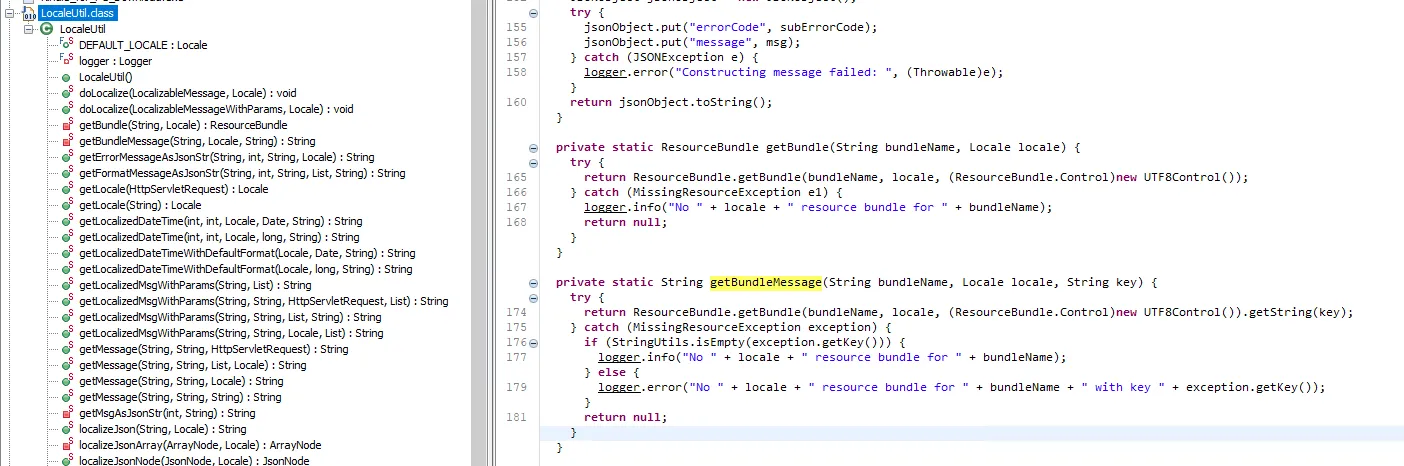

I used the program JD Project to decompile the Java bytecode in question and it worked quite well. I was able to search the decompiled bytecode normally and find the offending function:

which then allowed me to determine that this error message was actually erronious and just a product of VxRail trying and failing to localize an error message related to disk validation.

Upgrades

How Upgrades Work

During the upgrade process the old VxRail manager will have its IP and hostname removed and be shutdown while the new one assumes the previous manager’s hostname and IP. Upgrades are performed with the service account you configured when you built VxRail - not root.

Failed Upgrade

If an upgrade fails midflight this typically leaves the cluster in a state where there are two VxRail managers. In my team’s experience trying to resume the upgrade using the new VxRail manager leads to a host of issues.

Observed Errors

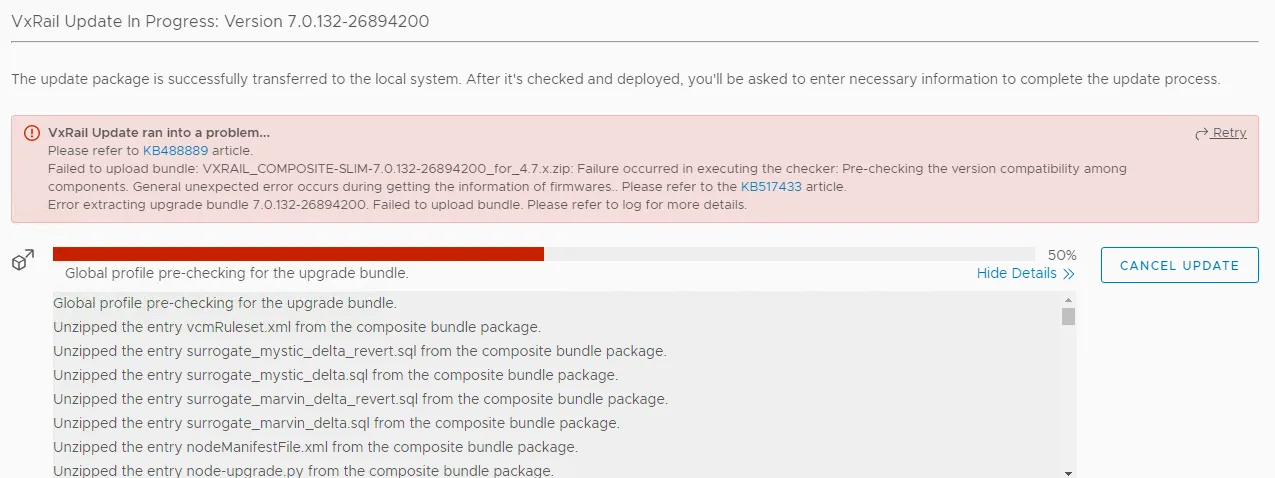

Specifically, we encountered the following errors:

VxRail Update ran into a problem...
Please refer to KB488889 article.
Failed to upload bundle: VXRAIL_COMPOSITE-SLIM-7.0.132-26894200_for_4.7x.zip: Failure occured in executing the checker: Pre-checking the version compatibility among components. General unexpected error occurs during getting the information of firmwares.. Please refer to the KB517433 article.
Error extracting upgrade bundle 7.0.132-26894200. Failed to upload bundle. Please refer to log for details.

This error is covered by Dell EMC VxRail: LCM failed at Error extracting update bundle 7.0.132

We also saw:

Failure occurred while running an upgrade for bundle VXRAIL_COMPOSITE-SLIM-7.0.132-26894200_for_4.7.x.zip. The error message [DependencyError] VIB DEL_bootbank_dcism_3.6.0.2249-DEL.700.0.0.15843807 requires esx-version >= 7.0.0 but the requirement cannot be satisfied within the ImageProfile. Please refer to the log file for more details.

Fix Action

The most reliable way to fix a stuck upgrade is to revert to the old VxRail Manager and then run the upgrade again. You can do this by shutting down the new VxRail Manager, deleting it, and then logging into the previous VxRail Manager on the console, re-IPing it, give it it’s previous hostname, and then restarting the upgrade.

Understanding Upgrades in ESXi

See What is the altbookbank Partition

Understanding the VxRail Update Bundle

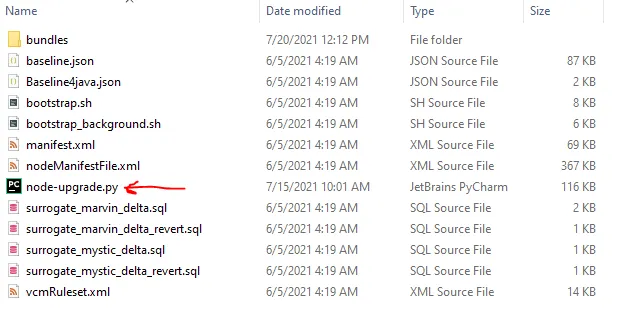

At the top level the upgrade is governed and controlled by the file node-upgrade.py in the root of the upgrade bundle:

The bundles directory has all the possible files that could be installed with the update. The exact files which are installed vary by system. More on that in the section Manifest File and Update Order.

Manifest File and Update Order

The manifest file defines which VIBs will be installed based on system parameters and in what order they will be installed in. For example: ESXi:

<Package InstallOrder="100">
        <ComponentType>ESXi</ComponentType>
        <DisplayName>ESXi</DisplayName>
        <Version>7.0.2</Version>
        <Build>17867351</Build>
      <File>bundles/ESXi-7.0.2-ep1_17867351-34777dce-standard.zip</File>
        <Size>393239990</Size>
        <HighestFormatVersionSupported>11</HighestFormatVersionSupported>
        <UpgradeTime>5</UpgradeTime>
        <RebootFlag>True</RebootFlag>
        <Package InstallOrder="101">
            <ComponentType>ESXi_No_Tools</ComponentType>
            <DisplayName>VMware ESXi No Tools</DisplayName>
            <Version>7.0.2</Version>
            <Build>17867351</Build>
            <File>bundles/ESXi-7.0.2-ep1_17867351-34777dce-upgrade-no-tools.zip</File>
            <Size>207115430</Size>
            <HighestFormatVersionSupported>11</HighestFormatVersionSupported>
            <UpgradeTime>5</UpgradeTime>
            <RebootFlag>True</RebootFlag>
        </Package>
        <Package InstallOrder="1001">
            <ComponentType>ESXi_VIB</ComponentType>
            <DisplayName>Dell iSM for vSphere 7</DisplayName>
            <Version>3.6.0.2249</Version>
            <Build>DEL.700.0.0.15843807</Build>
            <SystemName>dcism</SystemName>

This is parsed by the function _parse_esxi_patch, _parse_install_vib, and _parse_update_firmware in node-upgrade.py on line 1381, 1454, and 1492:

def _parse_esxi_patch(self, element):
    task = {
        'type': "esxi_patch",
        'name': "Install ESXi VMware patch",
        'async': False,
        'visible': True,
    }

    task['install_order'] = int(element.get('InstallOrder'))
    task['args'] = self._extract_args(element, [
        'ComponentType',
        'DisplayName',
        'Version',
        'Build',
        'File',
        'Size',
        'HighestFormatVersionSupported',
    ])

    return task

---SNIP---

def _parse_install_vib(self, element):
  task = {
      'type': "install_vib",
      'async': False,
      'visible': True,
      'package_type': 'vib',
  }

  task['name'] = "Install %s" % element.find('DisplayName').text
  task['install_order'] = int(element.get('InstallOrder'))
  task['args'] = self._extract_args(element, [
      'ComponentType',
      'DisplayName',
      'Version',
      'Build',
      'SystemName',
      'File',
      'Size',
      'ReplaceTargetInfo/ReplaceTarget/SystemName',
  ])

  component_type = task['args'].get('ComponentType', '')
  display_name = task['args'].get('DisplayName', '')
  if equals_ignore_case(display_name, 'VxRail VIB') or \
          equals_ignore_case(component_type, 'VXRAIL_'):
      task['args']['SystemName'] = "vmware-marvin"

  pkg_file = task['args'].get('File', '')
  file_path = os.path.join(self._bundle_dir, pkg_file)
  vlcm_bundle_info = self._vlcm_bundle_info(file_path)

  if vlcm_bundle_info:
      task['package_type'] = 'component'
      task['component_name'] = vlcm_bundle_info[0]
      task['component_version'] = vlcm_bundle_info[1]

  return task

def _parse_update_firmware(self, element):
  task = {
      'type': "update_firmware",
      'async': True,
      'visible': True,
      'runtime_check': False,
  }

  task['name'] = "Update %s" % element.find('DisplayName').text
  task['install_order'] = int(element.get('InstallOrder'))
  task['args'] = self._extract_args(element, [
      'ComponentType',
      'DisplayName',
      'Version',
      'Build',
      'File',
      'Size',
  ])

  nic_models = self._extract_target_models(element, 'TargetNicModelInfo')
  component_models = self._extract_target_models(
      element, 'TargetComponentModelInfo')
  fw_models = nic_models + component_models
  if fw_models:
      task['args']['FirmwareModels'] = fw_models
  else:
      task['args']['FirmwareModels'] = None

  return task

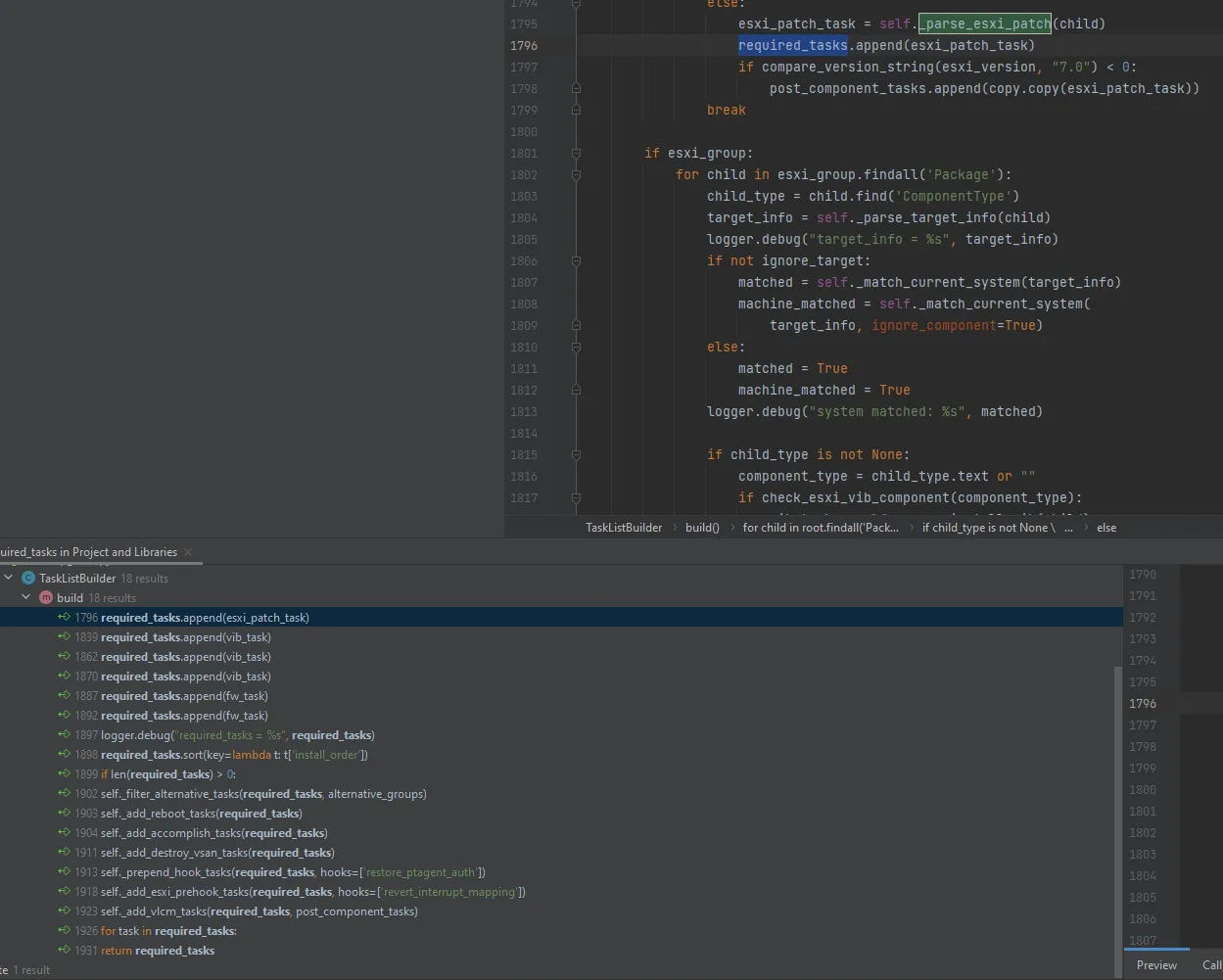

These functions are used to create tasks which are stored in the required_tasks variable:

After all tasks are added to required tasks they are sorted with a lambda function on line 1898:

required_tasks.sort(key=lambda t: t['install_order'])

Subsequently it is safe to assume a linear sort on the integer value. We can use this to diagnose any problems we encounter with install order.

Troubleshooting Docker

Restarting a Container

You can add and remove a container with docker service scale func_lockbox=0 && docker service scale func_lockbox=1

Checking Swarm Status

Use docker info to get the swarm info and docker node ls to list the nodes

vcluster202-vxm:~ # docker info
Client:
 Context:    default
 Debug Mode: false

Server:
 Containers: 110
  Running: 53
  Paused: 0
  Stopped: 57
 Images: 43
 Server Version: 20.10.9-ce
 Storage Driver: overlay2
  Backing Filesystem: extfs
  Supports d_type: true
  Native Overlay Diff: true
  userxattr: false
 Logging Driver: json-file
 Cgroup Driver: cgroupfs
 Cgroup Version: 1
 Plugins:
  Volume: local
  Network: bridge host ipvlan macvlan null overlay
  Log: awslogs fluentd gcplogs gelf journald json-file local logentries splunk syslog
 Swarm: active
  NodeID: gvqywccvm7g1qcbhud1kej1y5
  Is Manager: true
  ClusterID: 3uj8bybr66y3edkgp4txgmhse
  Managers: 1
  Nodes: 1
  Default Address Pool: 169.254.170.0/24
  SubnetSize: 24
  Data Path Port: 4789
  Orchestration:
   Task History Retention Limit: 5
  Raft:
   Snapshot Interval: 10000
   Number of Old Snapshots to Retain: 0
   Heartbeat Tick: 1
   Election Tick: 10
  Dispatcher:
   Heartbeat Period: 10 years
  CA Configuration:
   Expiry Duration: 10 years
   Force Rotate: 1
  Autolock Managers: false
  Root Rotation In Progress: false
  Node Address: 127.0.0.1
  Manager Addresses:
   127.0.0.1:2377
 Runtimes: io.containerd.runc.v2 io.containerd.runtime.v1.linux oci runc
 Default Runtime: runc
 Init Binary: docker-init
 containerd version: 5b46e404f6b9f661a205e28d59c982d3634148f8
 runc version:
 init version:
 Security Options:
  apparmor
  seccomp
   Profile: default
 Kernel Version: 5.3.18-24.96-default
 Operating System: SUSE Linux Enterprise Server 15 SP2
 OSType: linux
 Architecture: x86_64
 CPUs: 4
 Total Memory: 11.69GiB
 Name: vcluster202-vxm
 ID: XFEN:HBJA:CCKR:7CGG:QKXR:DDQP:ZEB3:YPOW:NAUC:AASS:3WM7:3A2F
 Docker Root Dir: /var/lib/docker
 Debug Mode: false
 Registry: https://index.docker.io/v1/
 Labels:
 Experimental: false
 Insecure Registries:
  127.0.0.0/8
 Live Restore Enabled: false

WARNING: No swap limit support
vcluster202-vxm:~ # docker node ls
ID                            HOSTNAME          STATUS    AVAILABILITY   MANAGER STATUS   ENGINE VERSION
gvqywccvm7g1qcbhud1kej1y5 *   vcluster202-vxm   Ready     Active         Leader           20.10.9-ce

Check for a List of Services

Each container on VxRail runs as a separate service. You can check their status with docker service ls.

vcluster202-vxm:~ # docker service ls
ID             NAME                         MODE         REPLICAS   IMAGE                                       PORTS
r4mawp339y88   func_alertmanager            replicated   1/1        infra/prom/alertmanager:1.8.9
iduap6ujbho1   func_api-gateway             replicated   1/1        infra/nginx_gateway_vxrail:1.8.14
5e18xm020k0f   func_auth-service            replicated   1/1        microservice/auth-service:1.8.13
j4pg14v6ajts   func_cacheservice            replicated   1/1        infra/redis:1.8.11
5e1q0w6v2exg   func_cms-service             replicated   1/1        microservice/cms-service:1.8.31
i4xpa8ltrla0   func_configservice           replicated   1/1        infra/infra-config-service:1.8.10
uma1pjrkwjcq   func_do-cluster              replicated   1/1        do-main/do-cluster:1.8.26
uprraqe4lxo4   func_do-ecosystem            replicated   1/1        do-main/do-ecosystem:1.8.26
0bpnsjy617yx   func_do-eservices            replicated   1/1        do-main/do-eservices:1.8.26
uaza36n6v9hl   func_do-host                 replicated   1/1        do-main/do-host:1.8.26
jby3wca4pgxh   func_do-kgs                  replicated   1/1        do-main/do-kgs:1.8.26
7nh07m0qnn10   func_do-network              replicated   1/1        do-main/do-network:1.8.26
ta846rozl38e   func_do-serviceability       replicated   1/1        do-main/do-serviceability:1.8.26
yczljgv2hfki   func_do-storage              replicated   1/1        do-main/do-storage:1.8.26
tizxv31eqr6z   func_do-vm                   replicated   1/1        do-main/do-vm:1.8.26
pnwq69rtx8b9   func_do-vxrail-system        replicated   1/1        do-main/do-vxrail-system:1.8.26
pescqbk5gdm6   func_event-history-service   replicated   1/1        microservice/event-history-service:1.8.18
uvj4grv92xjx   func_event-service           replicated   1/1        microservice/event-service:1.8.18
i1ajjwa20o2h   func_faas-swarm              replicated   1/1        infra/openfaas/faas-swarm:1.8.9
xdnl8mbbfnhw   func_gateway                 replicated   1/1        infra/openfaas/gateway:1.8.9
w7yz4wdlurgx   func_hsm                     replicated   1/1        microservice/hsm:1.8.25
txlipzyfxe5k   func_infra-scale-service     replicated   1/1        infra/infra-scale-service:1.8.8
hrzxht5zp33u   func_kgs-service             replicated   1/1        microservice/kgs-service:1.8.9
iweqxas2urpn   func_lockbox                 replicated   1/1        microservice/lockbox:1.8.10
q75sa2hvxc0z   func_lockservice             replicated   1/1        infra/infra-lock-service:1.8.8
zd10d8q5vmml   func_logging                 replicated   1/1        infra/logging:1.8.9
nob97ajl4wjl   func_ms-day1-bringup         replicated   1/1        microservice/ms-day1-bringup:1.8.21
339zceysq1w7   func_ms-day2                 replicated   1/1        microservice/ms-day2:1.8.40
vwofhpygnrvz   func_nano-service            replicated   1/1        microservice/nano-service:1.8.21
ekm0s9o6fse3   func_nats                    replicated   1/1        infra/nats-streaming:1.8.9
o9ft5wqvkgyq   func_node-service            replicated   1/1        microservice/node-service:1.8.31
q9ewku1t3xjy   func_prometheus              replicated   1/1        infra/prom/prometheus:1.8.9
om3gislgsh82   func_property-collector      replicated   1/1        do-main/property-collector:1.8.26
pkhsz674xtde   func_queue-worker            replicated   1/1        infra/openfaas/queue-worker:1.8.9
anmzrcv2plzy   func_rcs-service             replicated   1/1        microservice/rcs-service:1.8.11
t16j0wln8w0s   func_serviceregistry         replicated   1/1        infra/gcr.io/etcd-development/etcd:1.8.9
rny34tgzu7jq   func_storage-service         replicated   1/1        microservice/storage-service:1.8.16
sbc1n8rr25n3   func_tracing                 replicated   1/1        infra/tracing:1.8.9
vdf4hdtl957a   func_vlcm                    replicated   1/1        microservice/vlcm:1.8.23
dkfjjajjx8tj   func_vxdoctor-service        replicated   1/1        microservice/vxdoctor-service:1.8.18
rsr9plg95qhw   func_wfservice               replicated   1/1        infra/workflow_engine:1.8.10

You can check the details of a specific service with docker service inspect --pretty <SERVICE>

vcluster202-vxm:~ # docker service inspect --pretty func_do-storage

ID:             yczljgv2hfkiou1zh6liq6tbr
Name:           func_do-storage
Labels:
 com.docker.stack.image=do-main/do-storage:1.8.26
 com.docker.stack.namespace=func
Service Mode:   Replicated
 Replicas:      1
UpdateStatus:
 State:         paused
 Started:       6 months ago
 Message:       update paused due to failure or early termination of task qgjut6lu088orf8dmi8r3xxt8
Placement:
UpdateConfig:
 Parallelism:   1
 On failure:    pause
 Monitoring Period: 5s
 Max failure ratio: 0
 Update order:      stop-first
RollbackConfig:
 Parallelism:   1
 On failure:    pause
 Monitoring Period: 5s
 Max failure ratio: 0
 Rollback order:    stop-first
ContainerSpec:
 Image:         do-main/do-storage:1.8.26
 Env:           API_RESOURCES=["v1/storage:do-storage/v1/storage"] REGISTERED=true SERVICE_LAYER=do SERVICE_NAME=do-storage SERVICE_PORT=5000 SERVICE_TYPE=micro TRACING_HOST=tracing TRACING_SERVICE_NAME=do-storage
 User: app:475
Mounts:
 Target:        /vxm_cert
  Source:       /etc/vmware-marvin/ssl
  ReadOnly:     false
  Type:         bind
 Target:        /certificate
  Source:       /var/lib/vmware-marvin/trust
  ReadOnly:     false
  Type:         bind
 Target:        /service_data
  Source:       /var/lib/vxrail/do_storage/data
  ReadOnly:     false
  Type:         bind
Resources:
 Limits:
  Memory:       1GiB
Networks: func_functions
Endpoint Mode:  vip
 Healthcheck:
  Interval = 30s
  Retries = 10
  StartPeriod = 1m0s
  Timeout =     1m0s
  Tests:
         Test = CMD-SHELL
         Test = curl -f http://localhost:5000/do-storage/v1/storage/health-check || exit 1

Adding Nodes

Version Compatibility Matrix: Link

Make sure before you try to do anything with adding nodes that you verify the versions are mutually compatible.

Troubleshooting

We bumped into several errors while attempting to add nodes and they varied in type. One of the errors we encountered was when adding the node the interface for the VxRail plugin failed entirely. We were able to fix it with the following process:

Take a snapshot of VxM
psql -U postgres vxrail -c "DELETE FROM system.operation_status WHERE state='IN_PROGRESS';"
enable advanced mode by changing it in /var/lib/vmware-marvin/lcm_advanced_mode.properties
Change the contents of /var/lib/vmware-mariv to {"state":"NONE","vc_plugin_updated":false,"deployed_for_public_api":false}
Restart Marvin with system restart vmware-marvin

In one instance we were able to clear all problems by restarting all nodes in the cluster, the VxRail manager, and vCenter. After a full reboot of everything, a series of general errors we had been receiving during validation cleared.

How Adding Nodes Works During Cluster Construction

All nodes after being RASR have a fully built vSAN disk group. During the initial cluster construction VxRail will select a primary node and then add it to the cluster. On every subsequent node it will delete that node’s vSAN disk group and then add it to the cluster’s existing disk group.

Disappearing Browse Button

Take a snapshot of VxM
psql -U postgres vxrail -c “DELETE FROM system.operation_status WHERE state=‘IN_PROGRESS’;”
enable advanced mode by change it in /var/lib/vmware-marvin/lcm_advanced_mode.properties
Change the contents of /var/lib/vmware-mariv to {“state”:“NONE”,“vc_plugin_updated”:false,“deployed_for_public_api”:false}
Result system restart vmware-marvin

Troubleshooting Script 15_setup_node.sh execution error

Node 3 Password Change

Somehow 192.168.0.172 changed iDRAC passwords overnight. Last I left it, it was in a reboot loop

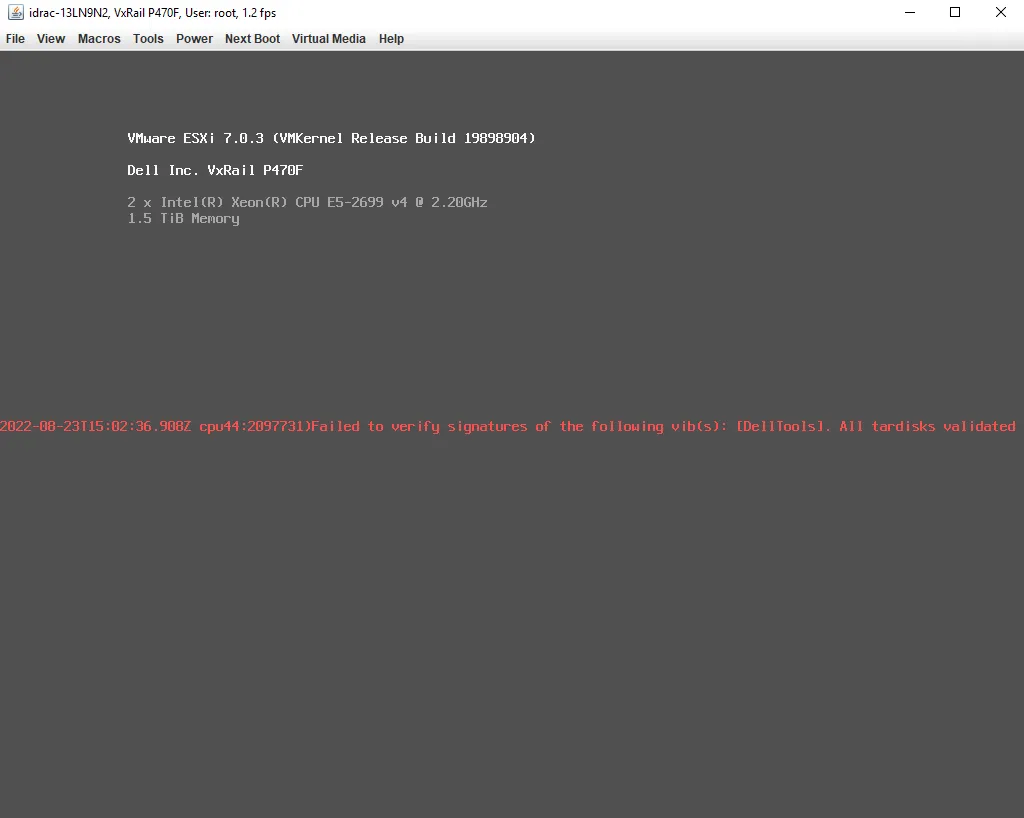

RASR process fails with “Script 15_setup_node.sh execution error”

Both 192.168.0.171 and 192.168.0.172 are failed with “Script 15_setup_node.sh execution error”. I confirmed they both had failed to generate disk mapping.

This does not exactly match the kb but it does appear to be fatal.

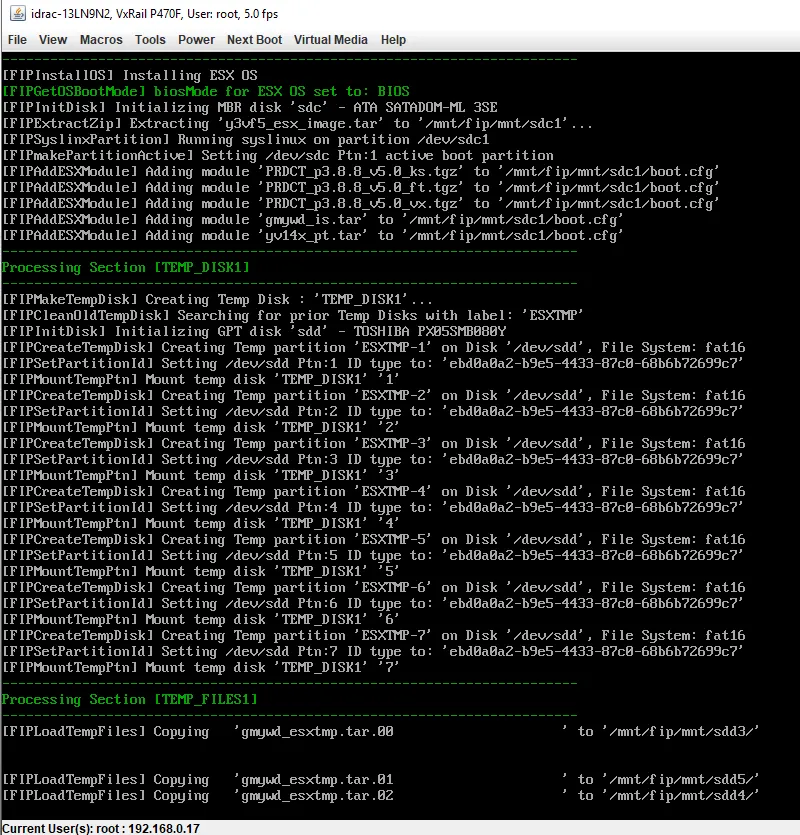

RASR on 192.168.0.172

I ran with no DUP install

Copying these temp files is taking hours. They’re only 12 GB

Same problem

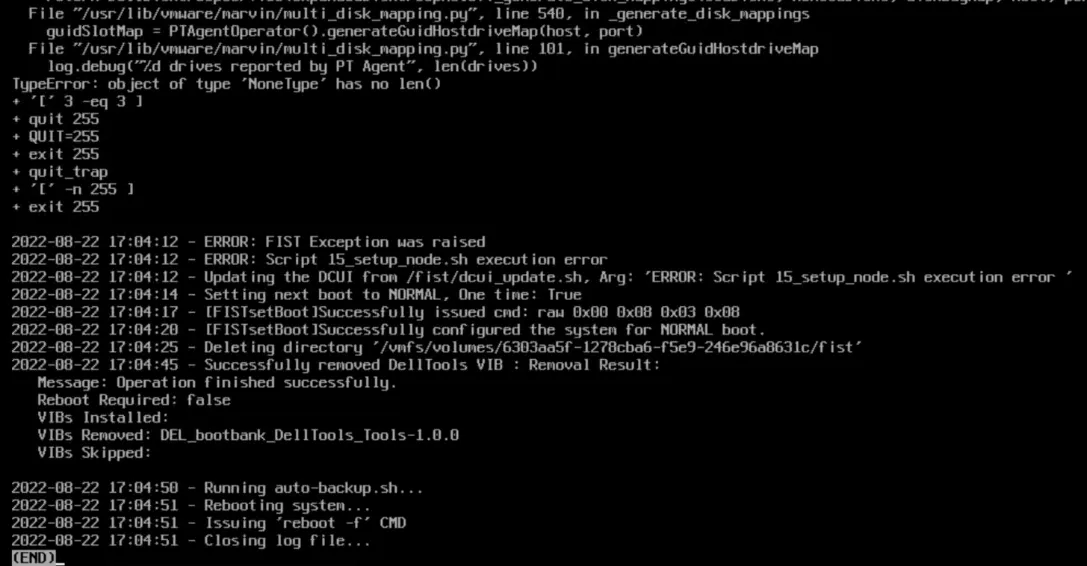

Debugging error

The error looks like https://www.dell.com/support/kbdoc/en-th/000193618?lang=en

For starters my fist.log was in /scratch instead of /mnt

The observed 15_setup_node.sh is in:

[root@fedora media]# grep -Ro 15_setup* .
grep: ./release/gmywd_is.tar: binary file matches

See 15_setup_node.sh

The referenced vmware-marvin seems to be a VIB

The failed post is here:

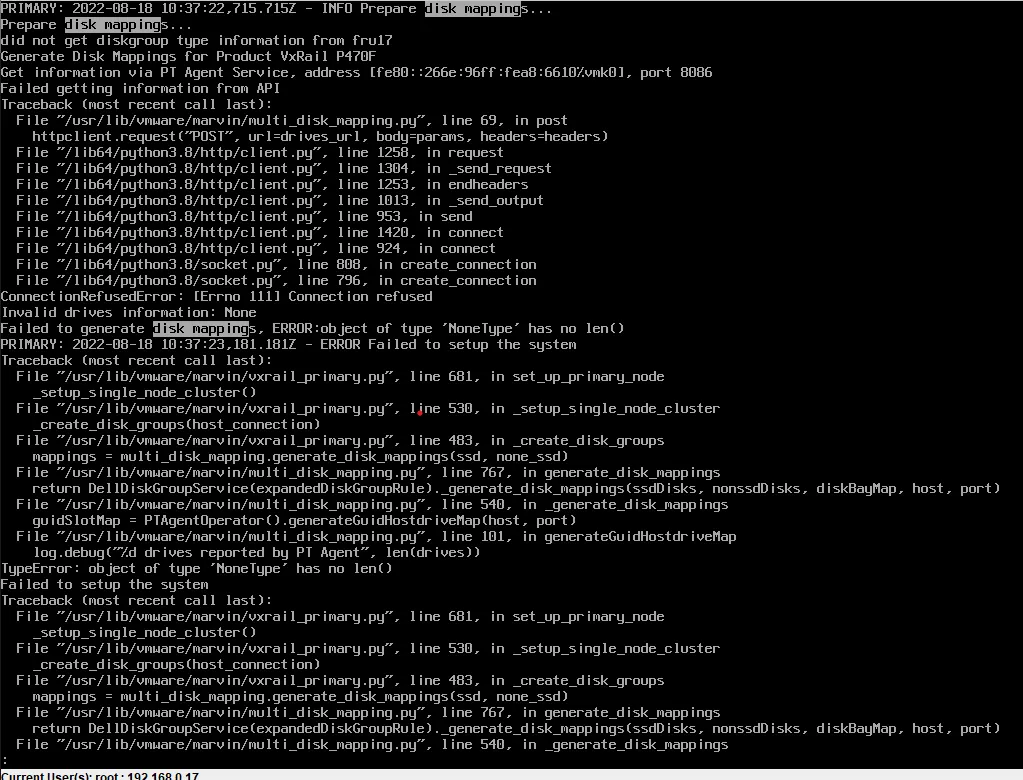

I can’t tell if this error is related but in another error this function failes:

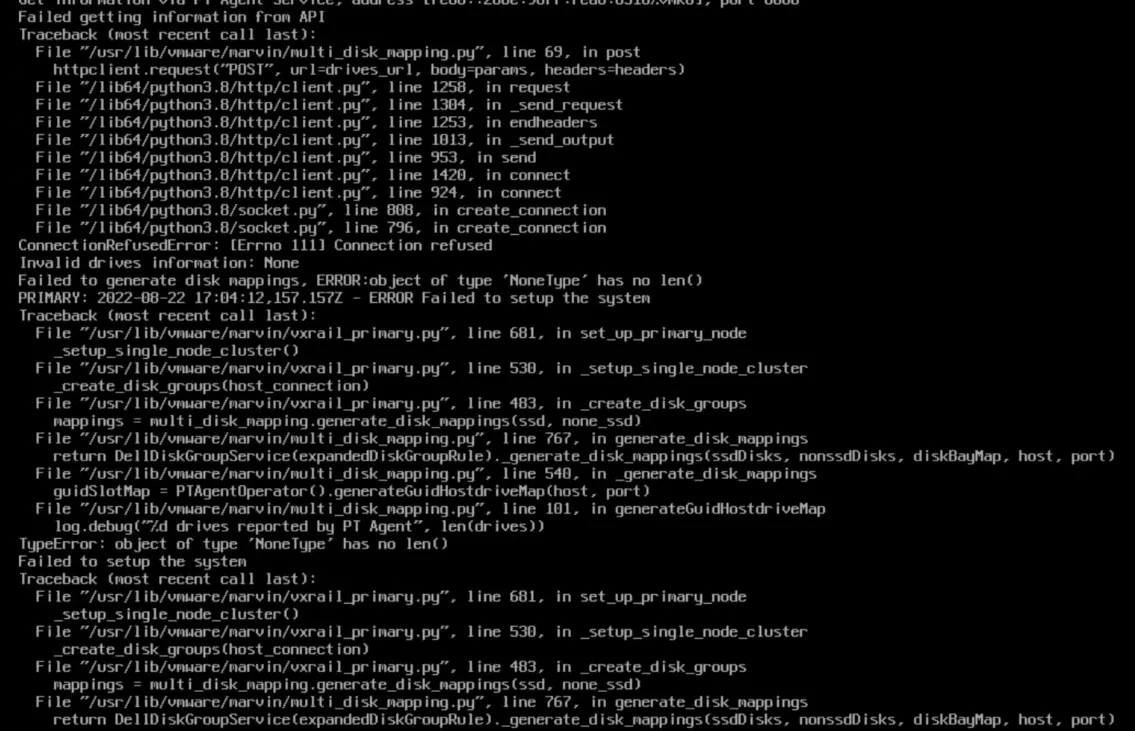

drives is none. Whatever is populating self.getDrivesInfo(host, port) isn’t working.

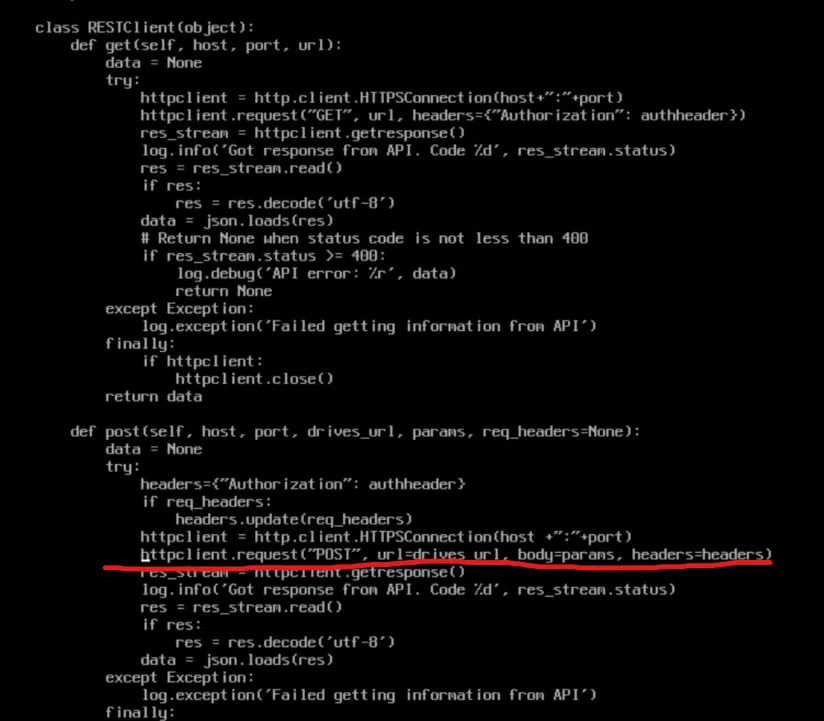

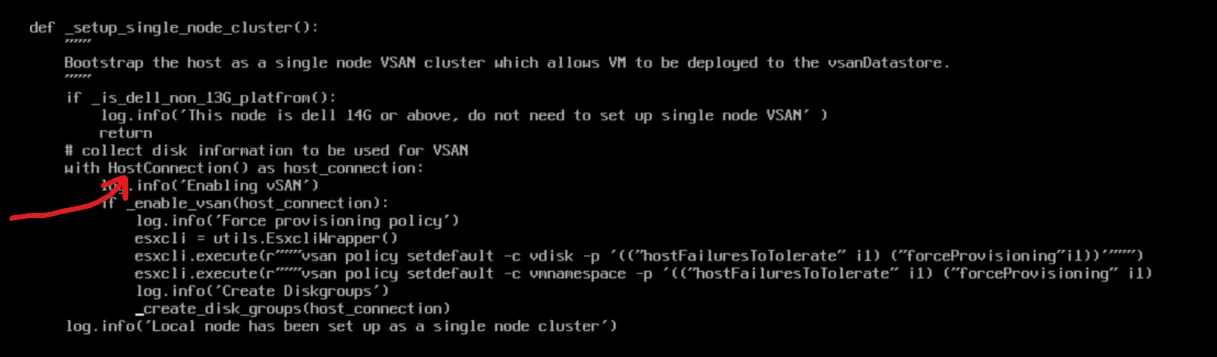

Whatever this is in vxrail_primary.py (line 530) HostConnection is not returning something valid. If we know what that is we can debug manually on the box. Moreover, this function is called is_dell_non_13G_platform but this is a P470F - which IS a 13G platform.

Log Info

lcm-web.log - Shows upgrade related info web.log - combined web output

Fixing Half Upgrade

Roll back to previous VxRail manager, then use it to complete the upgrade.

Uses ESXi management account for updates Uses PSC log

vCenter Logs

Altbootbank

You can load the old version with shift+r

Add nodes NIC config page

When you hit https://<host>/ui/vxrail/rest/vxm/private/system/cluster-hosts?$$objectID=urn:vmomi:ClusterComputeResource:domain<ID>&lang=en-us you should get back the existing hosts in the cluster with their hostname, model, serial_number, and vmnics

https://<HOST>/ui/vxrail/rest/vxm/private/system/available-hosts?$filter=serial_number%20in%20(SERIAL,SERIAL)&$$objectId=urn:vmomi:ClusterComputeResource:domain-<ID>&lang=en-us should get you the two hosts you are going to add

Add Node Error

“Could not find NSX-T network information” Http failure response for https://<address>/ui/vxrail/rest/vxm/private/cluster/network/nsxt???objectId=urn:vmomi:ClusterComputeResource:domain-ID=en-US: 404 OK

Error Node

Validation Errors

Disk Grouping Error (JKSLH63) Error occurs when validating disk group on host JKSLH63

web.log: ERROR [tomcat-http—48] com.emc.mystic.manager.commons.emc.webutil.LocaleUtil LocaleUtil.getBundleMessage:198 - No en_US resource bundle for ExpansionValidation with key JKSLH63

General Error

web.log: [WARN] com.vce.commons.config.ConfigServiceImpl$NotFoundHandler ConfigServiceImpl$NotFoundHandler.handleNotFound:114 - provided key is not present: [404, {“message”:“404 Not Found: bandwidth_throttling_level does not exist”}]

Redeploying VxRail Manager

Note: My testing was done on VxRail 7.0.320

Go to Edit Settings on your existing VxRail Manager and check its existing networking. There should be two networks. Make note of what they are as you will need these settings later. They are probably something like vCenter Server Network-<uuid> and VxRail Manager-<uuid>.
Make note of the existing VxRail manager’s IP address.
Log into the existing VxRail Manager. Run cat /var/lib/vmware-marvin/config-initial.json | jq | less. This is the current settings for VxRail Manager. I suggest you back this up and use it for your answers to the script but this is not required. You will need to backup the following files in this directory:
1. manifest.xml
2. vcmRuleset.xml
3. nodeManifestfile.xml
4. node-upgrade.py
5. baseline.json
Power down the existing VxRail Manager.

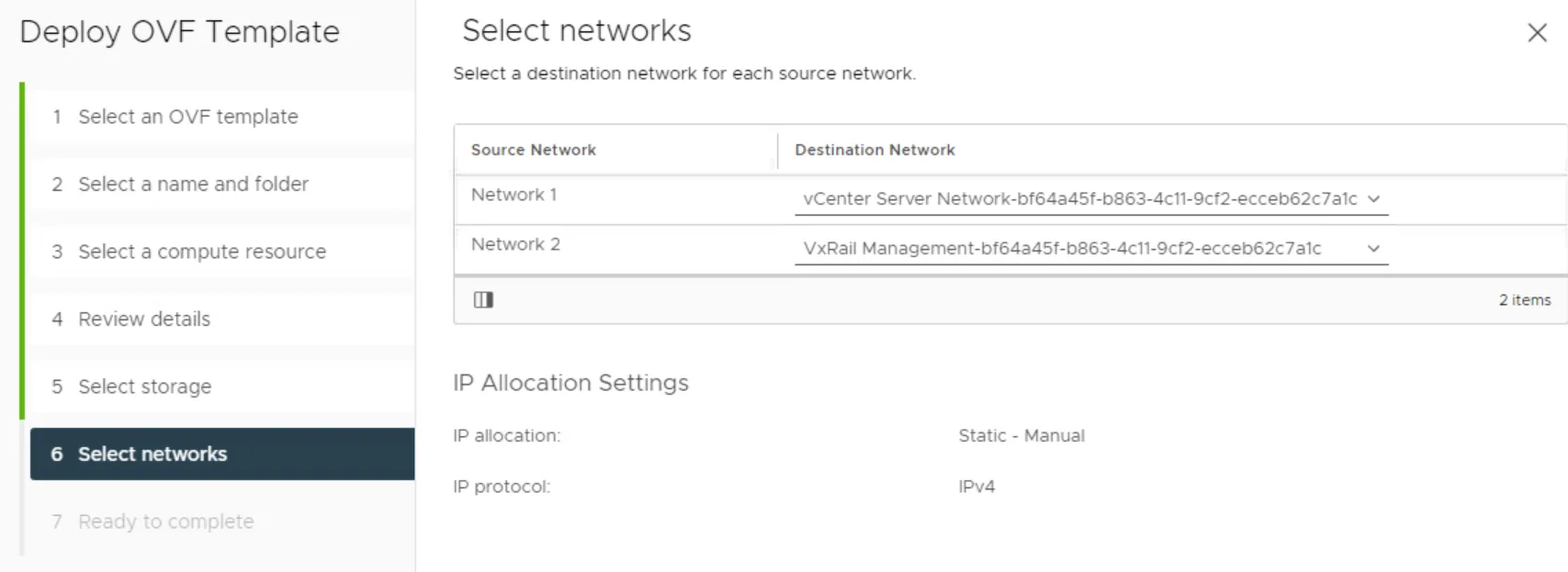

Import the new VxRail Manager. The values for the import are specific to the user except the networking. When selecting the networking for the new VxRail Manager there will be two networks. Match these to what you saw in the original VxRail Manager.
Before powering on your VxRail Manager you will need to change the guest operating system. Right click the VM, edit settings, vm options, general options, change the operating system to SUSE Linux 12. After you power on this should autocorrect itself to the correct OS. If you don’t do this you will get an error from vCenter saying the operating system is unsupported.
Login to the VxRail Manager in the web console with root / Passw0rd!
Set the ip address of eth0 with ifconfig eth0 <IP>, ifconfig eth0 netmask <NETMASK>, and ip route add 0.0.0.0/0 via <your_default_gateway>
If you do not already have it, contact Dell Support, ask for the script which comes with the KB Dell VxRail: Recover VxRail Manager VM from Scratch. Use credentials mystic / VxRailManager@201602! to upload the script to the IP address you established for VxRail Manager with WinSCP or other utility. Alternatively, you can copy and paste it over SSH with vim or your favorite editor.
SSH to the VxRail Manager.
Copy the files you backed up earlier (manifest.xml, vcmRuleset.xml, nodeManifestfile.xml, node-upgrade.py, baseline.json) to the /var/lib/vmware-marvin folder and change their owner to tcserver:pivotal.
Next, you will need to enable root login for SSH. Run vim /etc/ssh/sshd_config (or your favorite text editor). Change PermitRootLogin from no to yes. Save and restart sshd with systemctl restart sshd
Finally, run the uploaded script vxm_recovery_70x.py. Use the JSON you downloaded from the old VxRail Manager as a reference if you need it.
1. When asked if the VxRail Manager networking is configured as expected say no and then re-input all networking values.
2. Domain Search Path: This is top_level_domain in your JSON.
3. Is the Domain Name server external: check the field is_internal_dns in your JSON. WARNING it asks you if you domain server is external. If the value of is_internal_dns is false then make sure you answer yes to this question.
4. Domain Name Server IP address: Check the array dns_servers. If you only have one just import the one DNS server IP. If there is more than one, split each ip with a ,.
5. VxRail Manager hostname: This can be whatever you want it to be. You do not need to add the domain suffix here.
6. NTP server IPs: see the array ntp_servers in your JSON
7. Config root and mystic password of VxM: Select y if you haven’t done this already
8. Retrieve vRealize Log Insight Info - n unless you have vRealize Log Insight
9. vCenter IP: See vxrail_supplied_vc_ip in your JSON (this should be the IP address of your vCenter server)
10. vcenter FQDN: The FQDN of vCenter. Ex: vcluster202-vcsa.demo.local
11. Admin account name: This is typically administrator@something.something

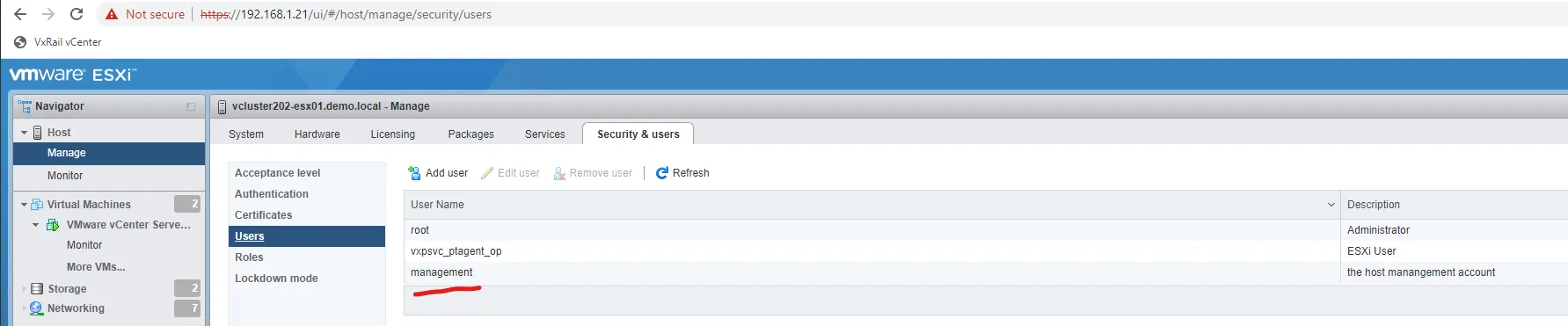

12. Management account name: This is the VxRail manager account name. NOT root. You can find it here:
  . WARNING if authentication fails, you may have to add @localos depending on your VxRail version.
13. Is PSC external: n
14. Is customized vds created? N
15. Can you confirm the management account info of the ESXi host: Answer yes. You can find the ESXi Management account info here:

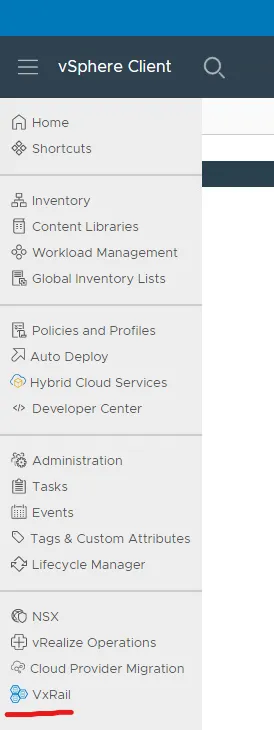

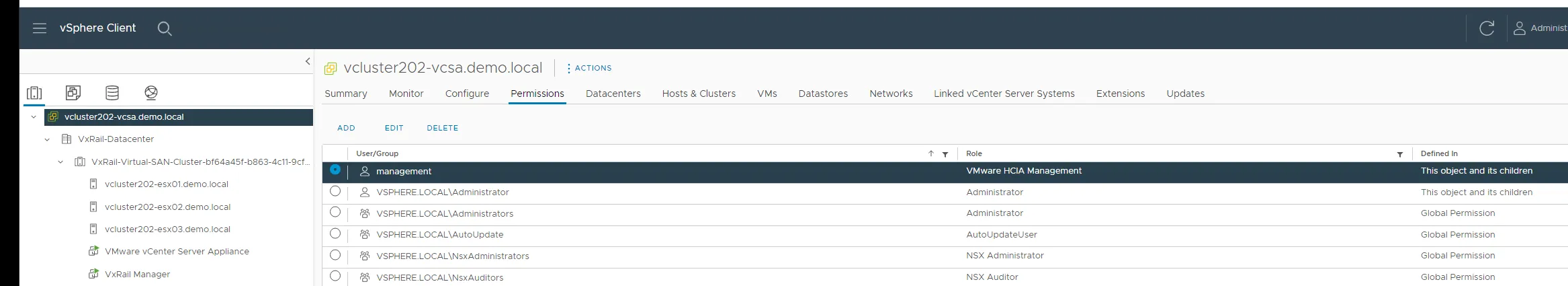

On vCenter, browse to VxRail here:
Confirm that the dashboard populates. It is normal for it to have warnings if it cannot connect to the internet. If it is not working, the screen will be completely blank. Make sure if you alread had vCenter open that you refresh the page.

Next, we are going to simulate a shutdown. You do not actually need to shutdown the cluster, but executing the shutdown simulation will confirm everything is working as expected.

In my instance I received the following:

If you see this, it is more than likely a cert problem. You can confirm this by checking the /var/log/microservice_log/short.term.log on the VxRail Manager. If this is indeed the problem you should see:

2022-10-20-04:18:26 microservice.do-cluster "[2022-10-20 04:18:26,812: ERROR/MainProcess] Failed to login by session cookie!"
2022-10-20-04:18:26 microservice.do-cluster "Traceback (most recent call last):"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/home/app/worker/task/vcenter.py"", line 414, in login_by_session_cookie"
2022-10-20-04:18:26 microservice.do-cluster "    username = si.content.sessionManager.currentSession.userName"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/VmomiSupport.py"", line 700, in __call__"
2022-10-20-04:18:26 microservice.do-cluster "    return self.f(*args, **kwargs)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/VmomiSupport.py"", line 520, in _InvokeAccessor"
2022-10-20-04:18:26 microservice.do-cluster "    return self._stub.InvokeAccessor(self, info)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/StubAdapterAccessorImpl.py"", line 40, in InvokeAccessor"
2022-10-20-04:18:26 microservice.do-cluster "    self._pc = si.RetrieveContent().propertyCollector"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/VmomiSupport.py"", line 706, in <lambda>"
2022-10-20-04:18:26 microservice.do-cluster "    self.f(*(self.args + (obj,) + args), **kwargs)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/VmomiSupport.py"", line 512, in _InvokeMethod"
2022-10-20-04:18:26 microservice.do-cluster "    return self._stub.InvokeMethod(self, info, args)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/SoapAdapter.py"", line 1350, in InvokeMethod"
2022-10-20-04:18:26 microservice.do-cluster "    conn.request('POST', self.path, req, headers)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/http/client.py"", line 1291, in request"
2022-10-20-04:18:26 microservice.do-cluster "    self._send_request(method, url, body, headers, encode_chunked)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/http/client.py"", line 1337, in _send_request"
2022-10-20-04:18:26 microservice.do-cluster "    self.endheaders(body, encode_chunked=encode_chunked)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/http/client.py"", line 1286, in endheaders"
2022-10-20-04:18:26 microservice.do-cluster "    self._send_output(message_body, encode_chunked=encode_chunked)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/http/client.py"", line 1046, in _send_output"
2022-10-20-04:18:26 microservice.do-cluster "    self.send(msg)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/http/client.py"", line 984, in send"
2022-10-20-04:18:26 microservice.do-cluster "    self.connect()"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/pyVmomi/SoapAdapter.py"", line 1039, in connect"
2022-10-20-04:18:26 microservice.do-cluster "    http_client.HTTPSConnection.connect(self)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/http/client.py"", line 1452, in connect"
2022-10-20-04:18:26 microservice.do-cluster "    server_hostname=server_hostname)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/gevent/_ssl3.py"", line 120, in wrap_socket"
2022-10-20-04:18:26 microservice.do-cluster "    _session=session)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/gevent/_ssl3.py"", line 308, in __init__"
2022-10-20-04:18:26 microservice.do-cluster "    self.do_handshake()"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/local/venv/lib64/python3.6/site-packages/gevent/_ssl3.py"", line 667, in do_handshake"
2022-10-20-04:18:26 microservice.do-cluster "    self._sslobj.do_handshake()"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/ssl.py"", line 694, in do_handshake"
2022-10-20-04:18:26 microservice.do-cluster "    match_hostname(self.getpeercert(), self.server_hostname)"
2022-10-20-04:18:26 microservice.do-cluster "  File ""/usr/lib64/python3.6/ssl.py"", line 331, in match_hostname"
2022-10-20-04:18:26 microservice.do-cluster "    % (hostname, dnsnames[0]))"
2022-10-20-04:18:26 microservice.do-cluster "ssl.CertificateError: hostname '192.168.1.20' doesn't match 'vcluster202-vcsa.demo.local'"
2022-10-20-04:18:26 microservice.do-cluster "[2022-10-20 04:18:26,816: INFO/MainProcess] Task worker.celery_task.rest_cluster.login_by_session_cookie[90e54bf5-a9d3-4d28-a76e-70fcbbe062cb] succeeded in 0.03339903799860622s: {'result': 'LOGIN_BY_SESSION_C                                                                         OOKIE_FAIL'}"

On the Vxrail manager, confirm that in /etc/hosts you have an entry for your vCenter. If not, add it.
On vCenter as root run mkdir -p /var/tmp/vmware && chmod 755 /var/tmp/vmware
Next run /usr/lib/vmware-vmca/bin/certificate-manager.
1. Select option 8
2. Do you wish to generate all certs using configuration file: n
3. Enter your credentials
4. You can leave everything to default until you get to Hostname. Here I used the FQDN for VCSA.
5. For VMCA I used the shortname of VCSA
6. When asked if you want to continue select yes. The script will run. This takes a while to run. For me it stopped at 85% for a long time. This appears to be normal.
Grab cert_util.py and upload it to VxRail Manager.
Run the script. If it fails saying No host configured run curl -k -H "Content-Type: application/json" -X PUT --unix-socket /var/lib/vxrail/nginx/socket/nginx.sock -d '{"value": "false"}' http://127.0.0.1/rest/vxm/internal/configservice/v1/configuration/keys/certificate_verification_enable. This will disable cert checking for it. After you run that command, rerun the script and it should complete successfully.

Logs

Generating Logs

If you want to get a full dump of all the logs associated with VxRail you can generate a dump by going to the VxRail plugin on vCenter, navigating to the support tab, and then clicking the generate log button.

VxRail Microservice (container) Logs

/var/log/microservice/vxrail-manager

RASR Process

The totality of the RASR process’ output is stored in the images folder on the local datastore in fist.log.

Tomcat Logs

/var/log/marvin/tomcat/logs /var/log/mystic/web.log

Upgrade Logs

The LCM process handles upgrades.

It’s logs are all in /var/log/mystic/lcm*.

You can also try checking the PSC log (haven’t personally done this)

API Logs

These are on vCenter.

See VMWARE API Logs

Helpful Commands

See Helpful Commands

Helpful KB Articles

VxRail API Info

See VMWare APIs
